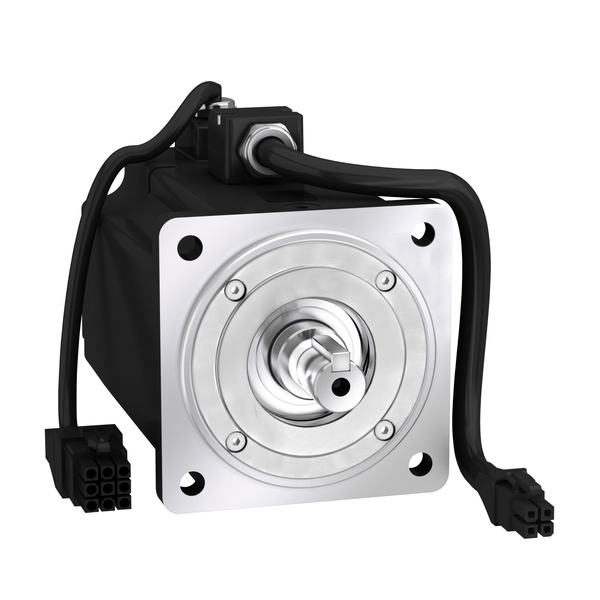

servo motor BCH, 80mm, 400W, no oil seal, w key, leads con
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
397,19 €
EAN: 3606480733666
MPN: BCH2LF0431CA5C
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | servo motor BCH, 80mm, 400W, no oil seal, w key, leads con |
| Brand | Schneider Electric |
| Categories |
Standard Electric Motors
|
| Country of origin | CN |
| Model | Rotary current synchronous motor |
| Voltage type | AC |
| Rated current | 15.6 A |
| Rated voltage | 220 V |
| Rated frequency | 50-60 Hz |
| Rated performance at rated frequency | 1.5 kW |
| Degree of protection (IP) | Other |
Packing details
| Packing level 1 | 3606480733666 |
Other Technical data
| Number of phases | 3 |
| Construction type | Other |
| Number of poles | 0 |
| Operating temperature | 0-40 °C |
| Rated rotational speed at rated frequency | 2000 1/min |
| Duty cycle | Other |
| Frame size according to IEC | 0 mm |
| Full-load efficiency | 0 % |
| Starting current ratio | 0 |
| Starting torque ratio | 0 |
| Breakdown torque ratio | 0 |
| Voltage anti-condensation heater | 0 V |
| Output power anti-condensation heater | 0 W |
| With positive temperature coefficient resistor (PTC) | No |
| With resistance temperature detector (RTD) | No |
| Intrinsic safety (IS) | None |
| Overload capability | No |
| Cooling method | Other |
| Shaft end type | Other |
| Vacuum pressure impregnation (VPI) | Other |
| Suitable for frequency control | No |
| Bearing | Other |
| Insulation class according to IEC | Other |
| With anti-condensation | No |
| Nominal torque | 0.64 Nm |
| Power factor | 0 |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Declaration DOC CE (Declaration of conformity CE)
Technical manual
Description
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 2.29A and a continuous power of 400W. The shaft dimensions are 14mm (diameter) x 30mm (length). It is furnished with free lead for electrical connection. It is an IP50 and IP54 rated product. The length of this product is 112mm and the centering collar dimensions are 4mm (depth) x 70mm (diameter) with 90mm mounting hole. It weighs 2kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM28 servo drive motor at 0.4kW 220V single phase and LXM28 servo drive motor. It supports 80mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
