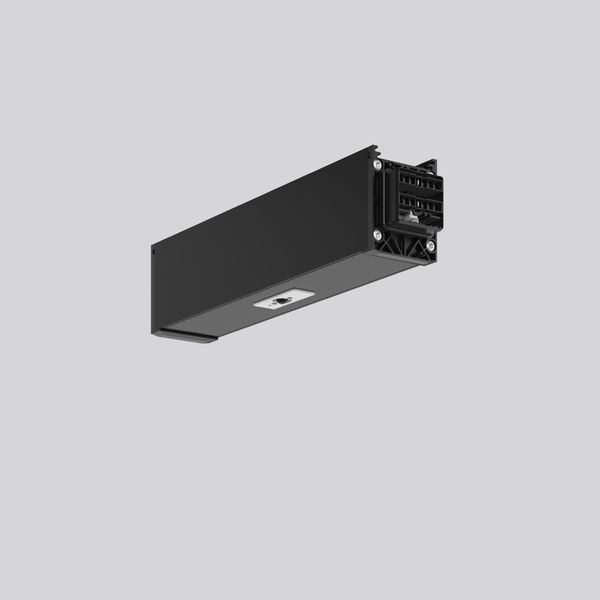

Sensor L 330 B 58 H 76 colour: black 220 - 240 V
Order only
Price (excl. VAT):
317,30 €
EAN: 4051859588351
MPN: 9503S1.003.400.000
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Sensor L 330 B 58 H 76 colour: black 220 - 240 V |
| Brand | RZB |
| Categories |
Controllers for luminaires
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5019 00 |
| Protection class | I |
| Width | 58 mm |
| Model | Static |
| Height | 76 mm |
| Housing | Plastic housing |
| Length | 330 mm |
| Surface-mounted | Yes |
| Built-in | No |
| Suitable for outdoor use | No |
| Degree of protection (IP) | IP20 |
| DIN-rail mounting | No |
Packing details
| Packing level 1 | 4051859588351, 4051859588351 |
Downloads
Description
Module including Passive Infrared (PIR) sensor for movement and ambient light. System profile made of aluminium extrusion profile, powder-coated. Simple, tool-free installation of system profiles using separate accessories for cable, chain or ceiling suspension. Tool-free connection and mechanical connectors to secure. 14-poles LINEDO connector (5 x 2.5 mm² / 9 x 1.5 mm²) for additional applications in light management or for the integration of emergency lighting. Phase can be set via patended bridge without opening the luminaire. Pre-assembled connector for DALI line. Light and movement sensor: Housing of non-flammable, halogen-free plastic (polycarbonate). Presence detection with passive IR element. Presence detection range adjustable via integrated shutters between 40° and 90°. Detection range: 6 m. Light sensor range: 20-800 lx (measured at the sensor). Function display with two-colour LED. Installation height: 2-5 m. Example of use: Monitoring of low ceiling rooms and rack storage where the installation height is normal. Please order supply module, connection and mounting accessories separately.
