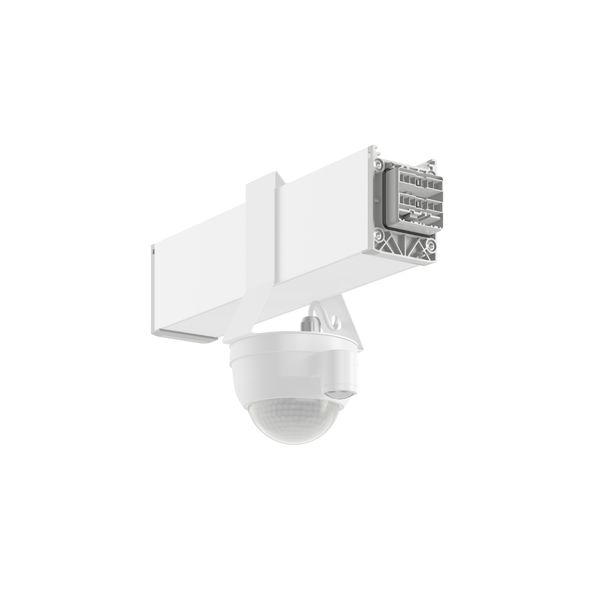

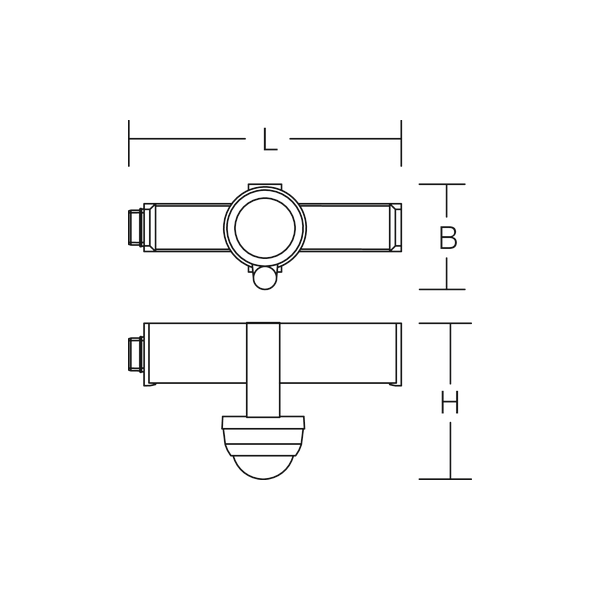

Sensor L 330 B 165 H 120 colour: white 220 - 240 V
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
575,58 €
EAN: 4051859963691
MPN: 9503C1.002.700.000
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Sensor L 330 B 165 H 120 colour: white 220 - 240 V |
| Brand | RZB |
| Categories |
Controllers for luminaires
|
| Country of origin | DE |
| Harmonized System Code | 8536 5003 00 |
| Protection class | I |
| Width | 165 mm |
| Model | Static |
| Height | 120 mm |
| Housing | Plastic housing |
| Length | 330 mm |
| Surface-mounted | Yes |
| Built-in | No |
| Suitable for outdoor use | No |
| Degree of protection (IP) | IP54 |
| DIN-rail mounting | No |
Packing details
| Packing level 1 | 4051859963691, 4051859963691 |
Downloads
Description
Module including Passive Infrared (PIR) sensor for movement and ambient light. Simple, tool-free installation of system profiles using separate accessories for cable, chain or ceiling suspension. Tool-free connection and mechanical connectors to secure. 14-poles LINEDO connector (5 x 2.5 mm² / 9 x 1.5 mm²) for additional applications in light management or for the integration of emergency lighting. Phase can be set via patended bridge without opening the luminaire. Pre-assembled connector for DALI line. Light and movement sensor: DALI-2 sensor can be individually positioned ± 1 m over the length of the system profile. Housing of non-flammable, halogen-free plastic (polycarbonate). Detection range: 30x19 m. Light sensor range: 10-2500 lx. Installation height: 5-16 m. Master version:: Only one master module possible per continuous line luminaire. Adjustable functions: Orientation light function, semi-automatic, fully automatic or daylight sensor operation. Factory setting 10 min and 500 lx. Run-on time: 1-30 min. Orientation light: 10-30 % / off / 5-60 min. DALI output: up to 50 DALI addresses. Please order supply module, connection and mounting accessories separately.
