SAC-12P- 4,0-35T/FS SH SCO - Sensor/actuator cable
Order only
Minimal order quantity: 50
Price (excl. VAT):
74,12 €
per pcs
Subtotal: 3 706,00 €
MOQ: 50
EAN: 4063151023997
MPN: 1110194
Package: 1
Box: 50
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SAC-12P- 4,0-35T/FS SH SCO - Sensor/actuator cable |
| Brand | Phoenix Contact |
| Categories |
Ethernet cable (network)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8544 4290 00 |
| UV resistant | No |
| Nominal cross section conductor | 0.14 mm² |
| Material core insulation | Polyvinyl chloride (PVC) |
| Core identification | Colour |
| Weight | 0 kg/km |
| Flame retardant | Other |
| Stranding element | Other |
| Colour outer sheath | Other |
| Category | Other |
| Diameter conductor | 0 mm |
| Screen over stranding element | Braiding |
| Screen over stranding | Braiding |
| Material outer sheath | Other |
| Conductor category | Class 6 = very flexible |
| Permitted cable outer temperature during assembling/handling | -5 °C |
| Permitted cable outer temperature after assembling without vibration | -40-80 °C |
| Number of stranding elements | 0 |
| Protective sheath | None |
| Number of cores | 12 |
| Suitable for underground installation | No |
| Stranding | Other |
| Outer diameter approx. | 8.5 mm |
| NVP value | 0 % |
| Oil resistant according to IEC 60811-404 | Yes |
| Oil resistant (according to IEC 60811-404) | Yes |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Min. permitted bending radius, moving application with forced guidance | 0 mm |
| Min. permitted bending radius, moving application/free movement | 0 mm |
| Min. permitted bending radius, stationary application/permanent installation | 0 mm |
| Specification core insulation | Other |
Packing details
| Packing level 1 | 4063151023997 |
| Packing level 2 | 4063151023997 |
Description

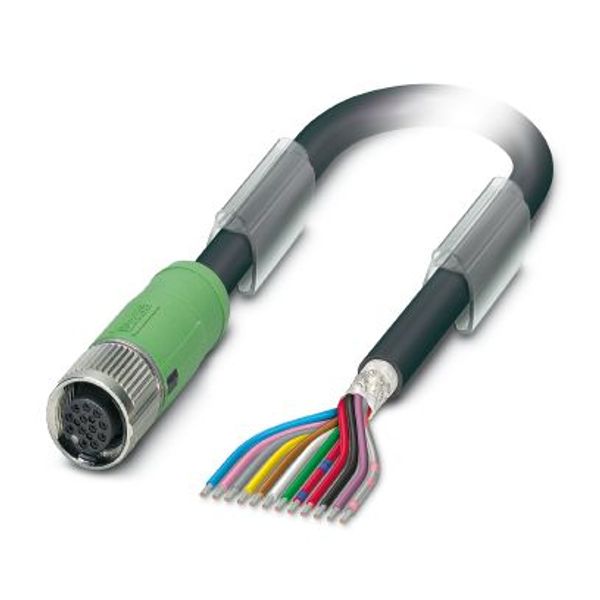

Sensor/actuator cable, 12-position, PUR/PVC, black RAL 9005, shielded, free cable end, on Socket straight M12 SPEEDCON, coding: A, cable length: 4 m
