Screwless coupler 5-p plug, red
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Screwless coupler 5-p plug, red |
| Brand | Ensto |
| ETIM | EC002566 |
| Model | Plug |
| Connection type | Spring clamp connection |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 20 A |
| Rated voltage | 400 V |
| Number of poles | 5 |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Silver-plated |
| Contact material | CuZn |
| Degree of protection (IP) | IP20 |
| Colour coding/contact insert | Red |
Packing details
| Packing level 1 | 6418677724220 |
| Packing level 2 | 6418677724220 |
| Packing level 3 | 6418677724220 |

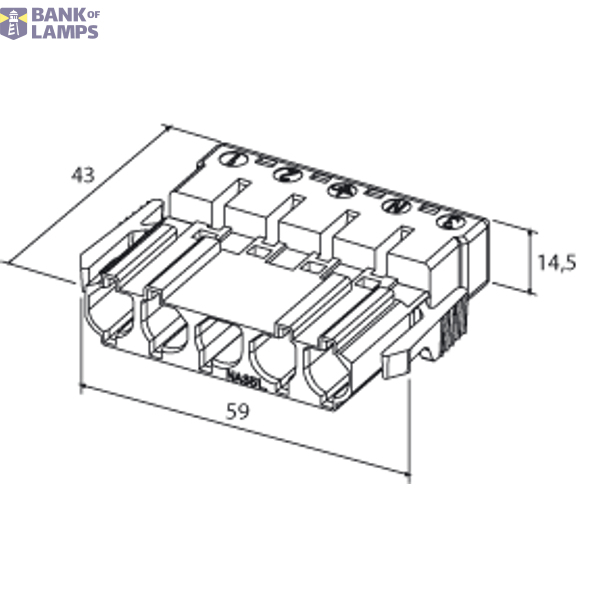

Other Technical data
| Width | 59 mm |
| Halogen free | Yes |
| Height | 15 mm |
| Colour housing | Red |
| Length | 43 mm |
| Pollution degree | 2 |
| Angle of plug | Straight |
| Mechanical coding | Yes |
| Rated surge voltage | 4 kV |
| Number of connections per pole | 2 |
| Built-in version | Built-in part/plug-in connection |
| Colour of the separate adapter piece | Without adapter piece |
| Connection cross section (solid-core) | 0.5-2.5 mm² |
| Max. continuous temperature resistance contact part | 70 °C |
| Max. continuous temperature resistance strain relief | 70 °C |
