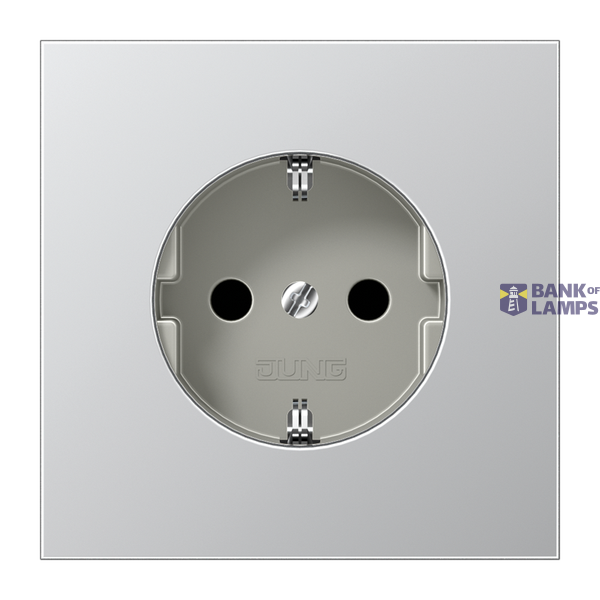

SCHUKO Steckdose, 16 A 250 V ~, integrierter erhöhter Berührungsschutz, SAFETY+, Serie LS, Aluminium
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SCHUKO socket, 16 A 250 V ~, integrated increased contact protection, SAFETY+, LS series, aluminum |
| Brand | Jung |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC000125 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Colour | Aluminium |
| Model | Protective contact (type F) |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Push-in clamp |
| Surface protection | Other |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Aluminium |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Material | Metal |
| Type of fastening | Mounting with claw and screw |
| Transparent | No |
| Surface finishing | Matt |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 70 mm |
| Device height | 70 mm |
| Number of socket outlets switchable | 0 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of active pins (round) | 2 |
| Protective earth pin round | Yes |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4011377183650 |
| Packing level 2 | 4011377183650 |
| Packing level 3 | 4011377183650 |
| Packing level 4 | 4011377183650 |
Description
SCHUKO® Steckdose, Aluminium
mit integriertem erhöhten Berührungsschutz
mit Federklemmen für starre Leiter bis 2,5 mm2
Verbindungsklemmen nach DIN VDE 0620
Material: Aluminium AlMg1 Naturton, mattgebeizt
Maße (B x H): 70 x 70 mm
