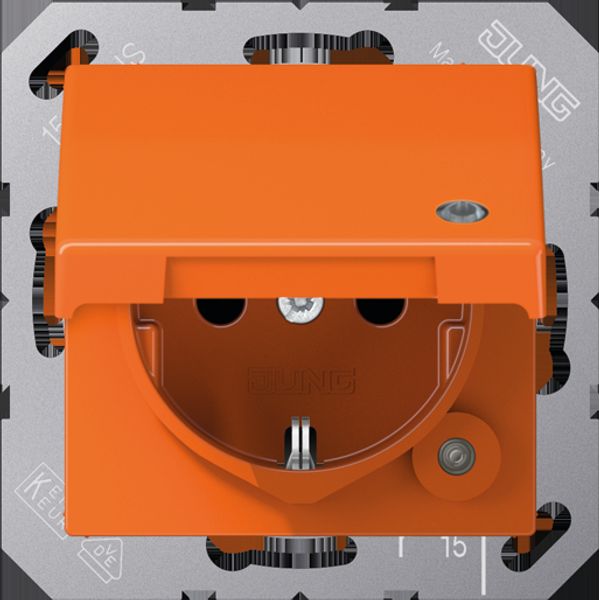

SCHUKO Socket AS/A, 16 A, 250 V, With Pilot Light, Safety Plus, Hinged Lid, Orange
Technical Information
| Item condition | New |
| Manufacture name | SCHUKO socket A1520BFKLKOO |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC000125 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Model | Protective contact (type F) |
| Connection type | Push-in clamp |
| Suitable for degree of protection (IP) | IP44 |
Packing details
| Packing level 1 | 4011377151321 |
| Packing level 2 | 4011377151321 |
Other Technical data
| Colour | Orange |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | Yes |
| Surface protection | Other |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Thermoplastic |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | Supplementary safety power supply (orange) |
| Insulated mounting | No |
| Material | Plastic |
| Rated fault current | 0 mA |
| Type of fastening | Mounting with claw and screw |
| RAL-number (similar) | 2004 |
| Transparent | No |
| Surface finishing | Glossy |
| With miniature fuse | No |
| With loop through function | No |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 0 |
| With function lighting | Yes |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Downloads
Description
SCHUKO socket A1520BFKLKOO ensures reliable power delivery within switch or power systems.Provides protective contact functionality and supports nominal current handling of 16A at 250V. Flush-mounted (plaster).Halogen free plastic, thermoplastic material quality.Orange RAL-2004 color, glossy surface finish.Hinged lid included for enhanced contact protection.IP44 rated for grounding and moisture resistance applications in single-phase setups.Push-in clamp connection type compatible with round protective earth pin configurations;supports 2 active round pins only—no flat pins integrated in the model housing design dimensions:width 55 mm, height 55 mm, depth unspecified minimal enclosure requirements noted box-depth installation matches device-outline at zero flush-clearance thresholds fabricated supplementary safety power supply specification matched orange designation-class infrastructure lacks miniature fuse casing
