SCHUKO Socket LS, 16 A, 250 V, With Pilot Light, With Inscription Field, Safety Plus, White, Duroplastic

Order only

EAN: 4011377147218

MPN: LS1520NAKOWW

Box: 1

Price (excl. VAT)

28,52 €

per unit

MOQ: 1

EDT to our warehouse: By request

Price valid until 31.12.26 or while in stock

Technical Information

Item condition	New
Manufacture name	SCHUKO socket LS1520NAKOWW
Brand	Jung
Categories	Sockets
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC000125
Nominal current	16 A
Nominal voltage	250 V
Mounting method	Flush mounted (plaster)
Model	Protective contact (type F)
Connection type	Push-in clamp
Suitable for degree of protection (IP)	IP20

Packing details

Packing level 1	4011377147218
Packing level 2	4011377147218

Other Technical data

Colour	White
Halogen free	Yes
Number of units	1
Lockable	No
With hinged lid	No
Surface protection	Other
With signal lamp	No
Number of phases	1
With enhanced contact protection	Yes
With on/off switch	No
Protective contact	Yes
Label space/information surface	Yes
Eject-mechanism	No
Material quality	Duroplast
Rotated central insert	No
Over voltage protection	No
Fault current protection	No
Special power supply	No special power supply
Insulated mounting	No
Material	Plastic
Rated fault current	0 mA
Type of fastening	Mounting with claw and screw
RAL-number (similar)	9016
Transparent	No
Surface finishing	Glossy
With miniature fuse	No
With loop through function	No
Device width	70 mm
Device height	70 mm
Device depth	0 mm
Number of socket outlets switchable	0
With function lighting	Yes
With orientation lighting	No
With built-in USB power supply	No
Number of modules (module system)	0
Number of active pins (round)	2
Number of active pins (flat)	0
Protective earth pin round	Yes
Min. depth of built-in installation box	0 mm
Anti-bacterial treatment	No

Downloads

Product data sheet Deep link REACH

Description

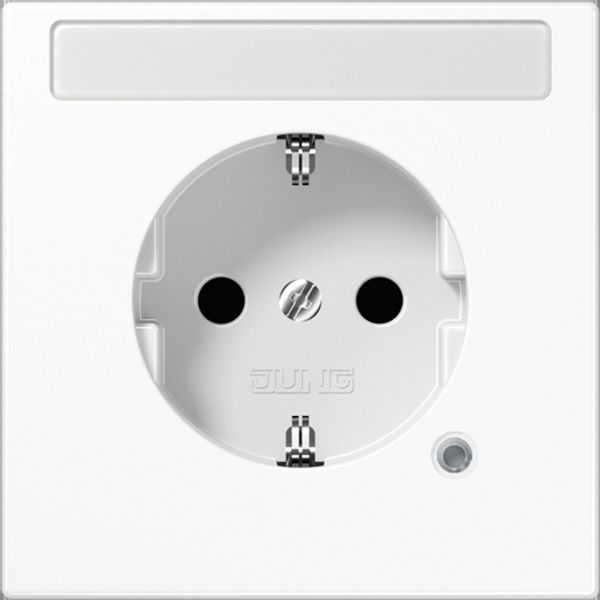

Provides power connection within switch or building systems.Standard protective contact (Schuko, Type F) unit with one active socket.Flush mount design for plaster installations. White duroplast plastic material, glossy surface finishing.RAL 9016 color code matches similar white tones.Impact-resistant build not specified but includes enhanced contact protection features. Connection type via push-in clamp;operates on nominal current of 16 A and nominal voltage of 250 V.Protective earth pin is round;two active round pins supported, no flat ones present.Type:IP20 rated, indoor use only without additional moisture shielding. 70 mm x 70 mm dimensions (width x height), depth unspecified;flush mounting requires minimal built-in box depth of 0 mm.Does not include hinged lid or eject mechanisms;simple integrated label space available for ID marking if needed. No halogen content in materials;robust against fire concerns in basic environments where anti-bacterial coating isn’t critical either.Includes functional lighting setup absent additional orientation functionality or signal lamps. Single-phase use case application only at standard frequencies when required power supplies maintain no special conditions outlined in source key systems spec provided link acts verifying distributor detail match
