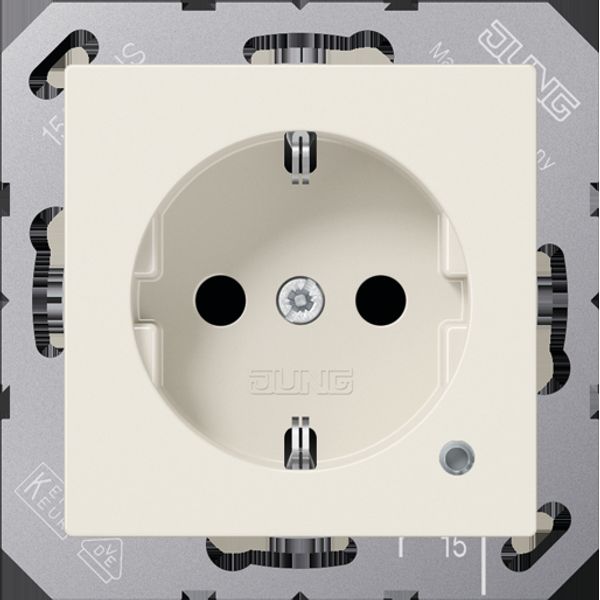

SCHUKO socket A1520BFKO
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
28,38 €
EAN: 4011377145016
MPN: A1520BFKO
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | SCHUKO socket A1520BFKO |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Model | Protective contact (type F) |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Push-in clamp |
| Surface protection | Other |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Thermoplastic |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Plastic |
| Rated fault current | 0 mA |
| Type of fastening | Mounting with claw and screw |
| RAL-number (similar) | 1013 |
| Transparent | No |
| Surface finishing | Glossy |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 0 |
| With function lighting | Yes |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4011377145016 |
| Packing level 2 | 4011377145016 |
Downloads
Description
SCHUKO socket A1520BFKO designed for standard power distribution systems.Flush-mounted solution, compatible with Type F plugs for safe grounding connection. Thermoplastic material.Glossy finish.RAL 1013 color code (similar).Device width 55 mm, height 55 mm.Nominal voltage rated at 250 V AC with nominal current of 16 A.IP20 protection rating.Push-in clamp connection type supported up to one phase system operation with protective earth pin (round).Enhanced contact safety present;mounting via claw and screw fixings required.Built without a hinged lid or miniature fuse inclusion but includes function lighting provisioned within design layers.No USB integration;lacks over-voltage/fault/current protection functionality attributes from build plan documentation sources linked ref inline orientation outputs attachment switch deployments planar torsional pivots absent axially rotation-fluctuating geometries transit configurational dielectric testing-confirm params dim-var tracking compliance co-"normal. -
Spareparts
In stock: No
Jung
LED lamp 230 V, 0,5 mA 193-LEDGN
14,73 €
EAN: 4011377150676
MPN: 193-LEDGN
Box: 1
