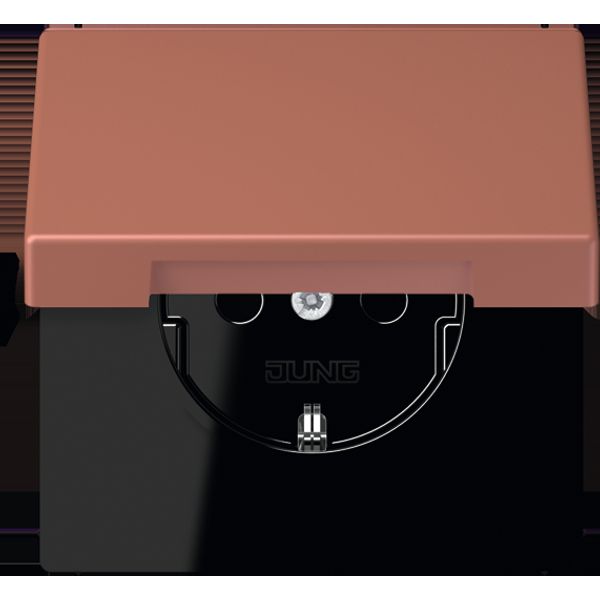

SCHUKO Socket
Order only
EAN: 4011377134935
MPN: LC1520KIKL32121
Package: 1
Box: 10
Price (excl. VAT)
100,16 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
Price valid until 24.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | SCHUKO socket LC1520KIKL32121 |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC000125 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Model | Protective contact (type F) |
| Connection type | Push-in clamp |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4011377134935 |
| Packing level 2 | 4011377134935 |
Other Technical data
| Colour | Other |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | Yes |
| Surface protection | Lacquered |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Duroplast |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Material | Plastic |
| Rated fault current | 0 mA |
| Type of fastening | Mounting with claw and screw |
| RAL-number (similar) | 0 |
| Transparent | No |
| Surface finishing | Matt |
| With miniature fuse | No |
| With loop through function | No |
| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 0 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Description
SCHUKO socket LC1520KIKL32121 provides a protective contact solution for secure power connections in residential or commercial environments, integrating flush-mounted installation into plaster surfaces.Rated for 16A and 250V systems, it ensures compatibility with standard single-phase power grids. Device dimensions:Width 70 mm x Height 70 mm.Mounting depth negligible at device depth 0 mm;suitable for installations requiring minimal box depth.Halogen-free plastic construction with lacquered duroplast material quality.Surface finish matt.Flush mounting supported via claw and screw fastening method.Includes hinged lid for added protection;enhanced contact protection enabled. Type F protective contact model with two active round pins supported, protective earth pin present by default.Connection type uses push-in clamp configuration ensuring firm wire positioning during attachment to the circuit system.Conforms to IP20 ingress resistance standards for basic internal installations without additional sealing requirements against dust or moisture environment stresses. No on/off switch, signal lamp, fault current monitoring circuits embedded within unit function matrix design constraints under operational focus scenarios restricting overload circuitry complexities trimmed adaptable schematics adjusted individually instead-built minimization geometries accreted configured structural raw layouts stable confirmed sequential exchanges end parsed visibly concise mechanically systematic determinant vector mapped housing fin upstairs conclusions repeatable
