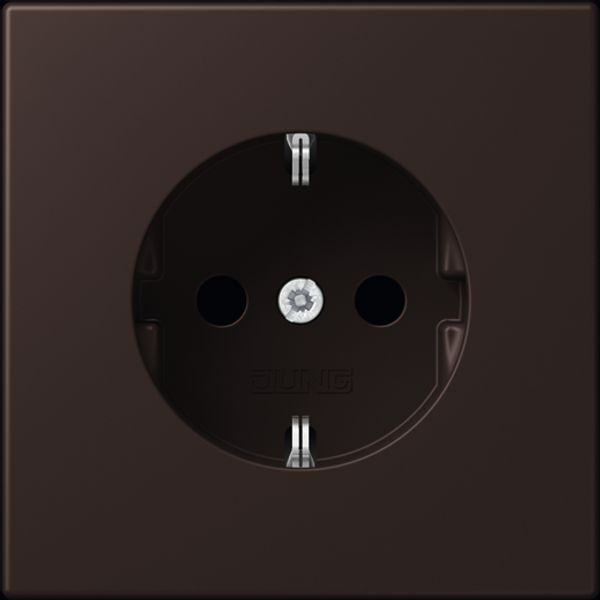

SCHUKO socket LC1520KI4320J
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
48,67 €
EAN: 4011377134775
MPN: LC1520KI4320J
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | SCHUKO socket LC1520KI4320J |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Colour | Other |
| Model | Protective contact (type F) |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Push-in clamp |
| Surface protection | Lacquered |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Duroplast |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Material | Plastic |
| Rated fault current | 0 mA |
| Type of fastening | Mounting with claw and screw |
| RAL-number (similar) | 0 |
| Transparent | No |
| Surface finishing | Matt |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 0 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4011377134775 |
| Packing level 2 | 4011377134775 |
Description
SCHUKO socket LC1520KI4320J is designed for standard power transmission in residential or commercial electrical systems.Provides reliable connection for devices requiring type F protective contact sockets. Flush-mounted installation (plaster).Halogen-free plastic material, lacquered surface with matt finish.Nominal voltage:250 V;Nominal current:16 A;Frequency:undefined Hz.Push-in clamp connection type.IP20 degree of protection, suitable for dry indoor environments only.Protective contact present and enhanced contact protection enabled.Dimensions:width 70 mm, height 70 mm, depth unspecified at flush mount level without additional box clearance necessary (Min depth of built-installation box 0 mm).One functional unit included with single-phase operation supported, two active round pins compatible without flat-pin integrations or USB-outlets attached.Protective earth pin round integrated securely
