SCHUKO Socket
Order only
EAN: 4011377112827
MPN: ME1520NC
Box: 1
Price (excl. VAT)
34,94 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
Price valid until 24.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | SCHUKO socket ME1520NC |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC000125 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Model | Protective contact (type F) |
| Connection type | Push-in clamp |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4011377112827 |
| Packing level 2 | 4011377112827 |
Other Technical data
| Colour | Brass |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Surface protection | Other |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | No |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Brass |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Metal |
| Rated fault current | 0 mA |
| Type of fastening | Mounting with screw |
| RAL-number (similar) | 0 |
| Transparent | No |
| Surface finishing | Matt |
| With miniature fuse | No |
| With loop through function | Yes |
| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 0 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Downloads
Description

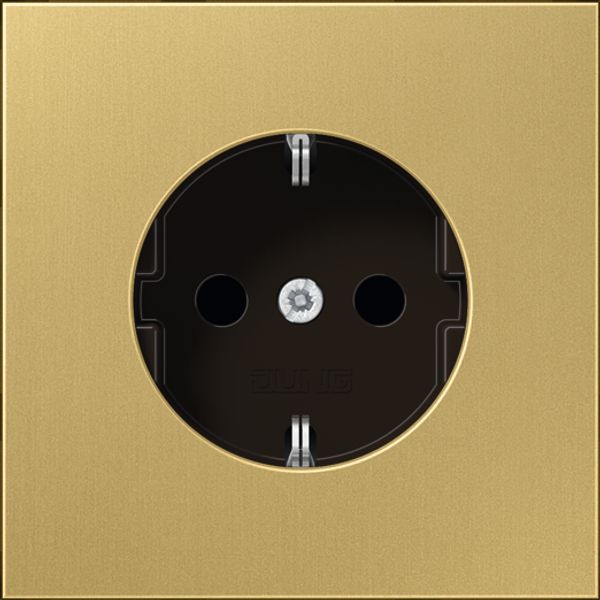

SCHUKO socket ME1520NC transfers electrical energy safely and reliably.Common in switch systems for residential or light commercial use.Flush-mounted unit with a brass metal design, matte finish surface.Rated nominal current 16A, voltage 250V, single-phase operation compatible with IP20 protection.Device dimensions:Width 70 mm, height 70 mm;depth irrelevant as noted "0 mm".Connection via Push-in clamp type ensures secure installation.Two active round pins present along with protective earth pin round for grounding functionality.No fault current or overvoltage protection integrated—basic setup only intended for standard environments without extreme conditions.
