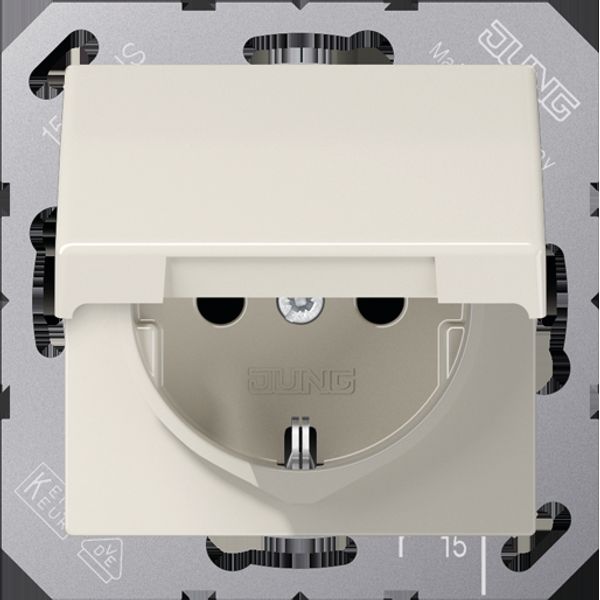

SCHUKO socket AS1520NBFKL
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
15,38 €
EAN: 4011377076846
MPN: AS1520NBFKL
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | SCHUKO socket AS1520NBFKL |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Model | Protective contact (type F) |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | Yes |
| Connection type | Push-in clamp |
| Surface protection | Other |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | No |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Thermoplastic |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Plastic |
| Rated fault current | 0 mA |
| Type of fastening | Mounting with screw |
| RAL-number (similar) | 1013 |
| Transparent | No |
| Surface finishing | Glossy |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP44 |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 0 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4011377076846 |
| Packing level 2 | 4011377076846 |
Downloads
Description
SCHUKO socket AS1520NBFKL used for connecting Type F electrical plugs to a power system.Designed for flush mount installations, typically in residential or commercial settings requiring IP44 protection. Nominal current 16 A, nominal voltage 250 V.Device dimensions:width 55 mm, height 55 mm.Material is thermoplastic plastic;halogen-free construction ensures safer usage.Surface finish is glossy;RAL color similar to 1013.Connection established using push-in clamp method.Single-phase operation with round protective earth pin included.Transparent feature not present;hinged lid attached for added security during non-use periods of the socket outlet
