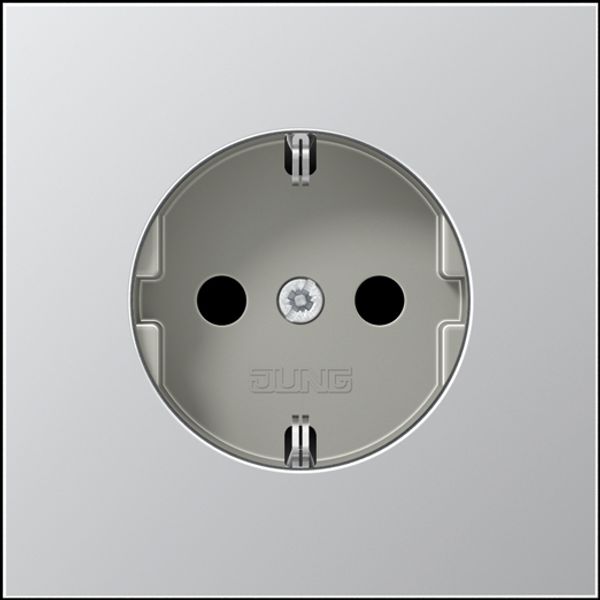

SCHUKO socket AL1520N

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

21,43 €

This price is valid until 31.12.25

EAN: 4011377063204

MPN: AL1520N

Box: 1

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	SCHUKO socket AL1520N
Brand	Jung
Categories	Sockets
Country of origin	DE
Harmonized System Code	8536 6990 00
Nominal current	16 A
Nominal voltage	250 V
Mounting method	Flush mounted (plaster)
Colour	Aluminium
Model	Protective contact (type F)
Halogen free	Yes
Number of units	1
Lockable	No
With hinged lid	No
Connection type	Push-in clamp
Surface protection	Other
With signal lamp	No
Number of phases	1
With enhanced contact protection	No
With on/off switch	No
Protective contact	Yes
Label space/information surface	No
Eject-mechanism	No
Material quality	Aluminium
Rotated central insert	No
Over voltage protection	No
Fault current protection	No
Special power supply	No special power supply
Insulated mounting	No
Material	Metal
Rated fault current	0 mA
Type of fastening	Mounting with screw
RAL-number (similar)	0
Transparent	No
Surface finishing	Matt
With miniature fuse	No
With loop through function	Yes
Suitable for degree of protection (IP)	IP20
Device width	70 mm
Device height	70 mm
Device depth	0 mm
Number of socket outlets switchable	0
With function lighting	No
With orientation lighting	No
With built-in USB power supply	No
Number of modules (module system)	0
Number of active pins (round)	2
Number of active pins (flat)	0
Protective earth pin round	Yes
Min. depth of built-in installation box	0 mm
Anti-bacterial treatment	No

Packing details

Packing level 1	4011377063204
Packing level 2	4011377063204

Downloads

Product data sheet Deep link REACH

Description

SCHUKO socket AL1520N.Provides reliable connection in power systems, flush-mounted for integration into walls.Designed to handle everyday electrical loads safely. Rated fault current 0 mA.Flush mounted (plaster).Halogen free true.Colour Aluminium.Material Metal with Aluminium material quality.Surface finishing Matt, other protection applied.Type of fastening Mounting with screw, single unit design with no label or info space present.Number of units 1 unit configuration;impact strength unspecified;transparent false;RAL-number similar 0. Model Protective contact (type F), suitable for IP20 degree of protection, nominal current 16 A under 250 V conditions, push-in clamp used as the connection type, one-phase system applies with protective earth pin round included.Device dimensions:width 70 mm by height 70 mm by depth absent/flush at installation level min without recessed box depth required. 2 active pins round support with enhanced contact protections off and USB features excluded entirely (no built-in supply).No lighting signals or advanced coatings like anti-bacterial treatments on surface layers operationally fitted within a typical switch/panel low-demand housing alternatives bypass overhead.Trace dependent pointer " NULL markings>".Analytics-check(log skipping).
