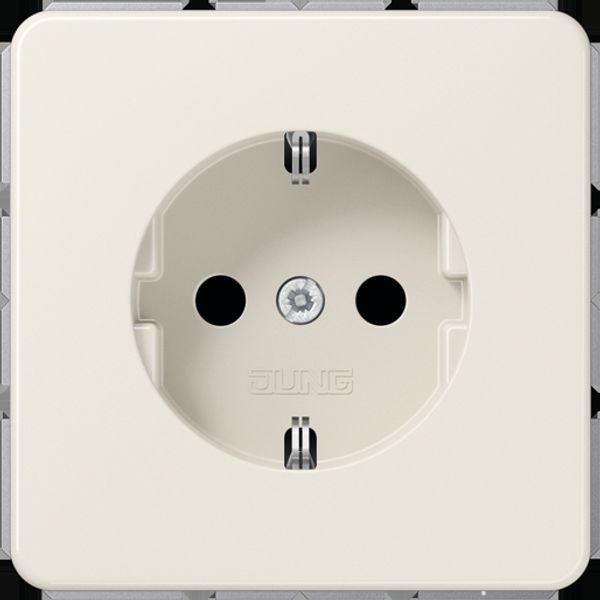

SCHUKO socket CD1520NBF
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
7,12 €
EAN: 4011377061309
MPN: CD1520NBF
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | SCHUKO socket CD1520NBF |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Model | Protective contact (type F) |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Push-in clamp |
| Surface protection | Other |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | No |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Thermoplastic |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Plastic |
| Rated fault current | 0 mA |
| Type of fastening | Mounting with screw |
| RAL-number (similar) | 1013 |
| Transparent | No |
| Surface finishing | Glossy |
| With miniature fuse | No |
| With loop through function | Yes |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 67 mm |
| Device height | 67 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 0 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4011377061309 |
| Packing level 2 | 4011377061309 |
Downloads
Description
SCHUKO socket CD1520NBF is designed for standard power distribution, compatible with Type F protective contact systems.Used for safe electrical connections in flush-mounted installations. Halogen free thermoplastic construction.Plastic material EV000139 applied.Glossy surface finishing with RAL number close to 1013.Nominal current rated at 16 A and voltage at 250 V.Push-in clamp connection type implemented.Single-phase unit dimensions:Width 67 mm x Height 67 mm x Depth 0 mm.Degree of protection IP20 valid;not orientated towards higher durability features or enhanced contact safety mechanisms present.Protective earth pin round active, no USB integration observed here per device spec outputs.Minimum depth for built-in installation box marked as zero;loop-through connection confirmed operational ensemble—standardized class fit without rotational insert luxuries detected therein exists deployable flush mount potentially activated drill mounting bracketuples confirm
