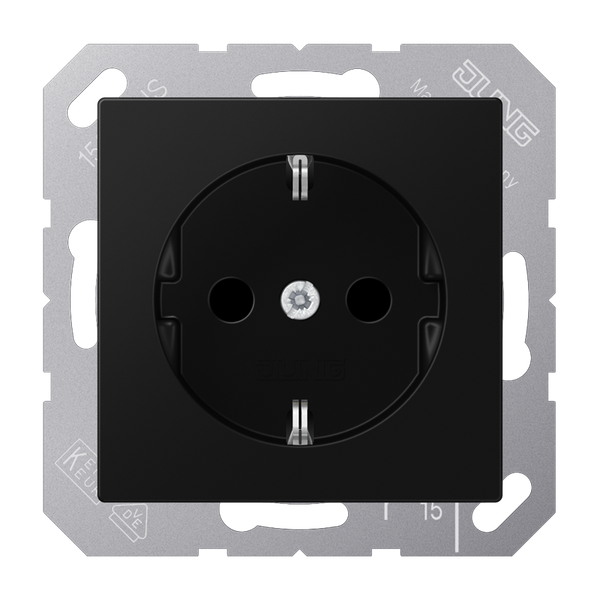

SCHUKO Socket A, 16 A, 250 V, Safety Plus, Thermoplastic Lacquered, Matt Graphite Black, Screw Terminals

Order only

EAN: 4011377190290

MPN: A1521BFKISWM

Package: 1

Box: 10

Price (excl. VAT)

13,91 €

per unit

MOQ: 1

EDT to our warehouse: 4-6 weeks

Price valid until 01.01.99 or while in stock

Technical Information

Item condition	New
Manufacture name	SCHUKO® socket 16 A / 250 V A1521BFKISWM
Brand	Jung
Categories	Sockets
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC000125
Nominal current	16 A
Nominal voltage	250 V
Mounting method	Flush mounted (plaster)
Model	Protective contact (type F)
Connection type	Screwed terminal
Suitable for degree of protection (IP)	IP20

Packing details

Packing level 1	4011377190290
Packing level 2	4011377190290

Other Technical data

Colour	Black
Halogen free	Yes
Number of units	1
Lockable	No
With hinged lid	No
Surface protection	Lacquered
With signal lamp	No
Number of phases	1
With enhanced contact protection	Yes
With on/off switch	No
Protective contact	Yes
Label space/information surface	No
Eject-mechanism	No
Material quality	Thermoplastic
Rotated central insert	No
Over voltage protection	No
Fault current protection	No
Special power supply	No special power supply
Material	Plastic
Type of fastening	Mounting with claw and screw
Transparent	No
Surface finishing	Matt
With miniature fuse	No
With loop through function	Yes
Device width	55 mm
Device height	55 mm
Number of socket outlets switchable	0
With function lighting	No
With orientation lighting	No
With built-in USB power supply	No
Number of active pins (round)	2
Protective earth pin round	Yes
Anti-bacterial treatment	No

Description

SCHUKO® socket designed for reliable power delivery in residential or commercial switch systems.Handles equipment requiring up to 16 A at 250 V efficiently, ensuring secure operation with enhanced contact protection. Flush mounted, plaster installation setup.Black thermoplastic construction, halogen-free, lacquered surface.Matt finish for non-reflective application aesthetics.Dimensions noted at 55 mm width x 55 mm height.Equipped with one protective earth round pin and two active round pins as part of its protective contact type F model configuration.Screwed terminal connection format—IP20 rating confirms standard indoor use without additional sealing requirements.Single-phase design accommodates typical line setups within systems operating nominal current of 16 A and voltage of 250 V AC.No signal lamps or USB functionality included;straightforward unit operation expected in basic circuit needs without integrated fuses or fault current protections
