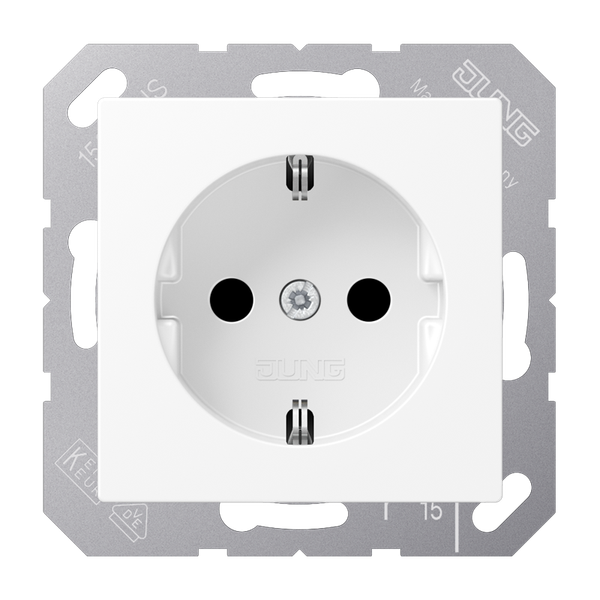

SCHUKO Socket A, 16 A, 250 V, Safety Plus, Thermoplastic Lacquered, Matt Snow White, Screw Terminals

Order only

EAN: 4011377190238

MPN: A1521BFKIWWM

Package: 1

Price (excl. VAT)

13,91 €

per unit

MOQ: 1

EDT to our warehouse: 4-6 weeks

Price valid until 01.01.99 or while in stock

Technical Information

Item condition	New
Manufacture name	SCHUKO® socket 16 A / 250 V A1521BFKIWWM
Brand	Jung
Categories	Sockets
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC000125
Nominal current	16 A
Nominal voltage	250 V
Mounting method	Flush mounted (plaster)
Model	Protective contact (type F)
Connection type	Screwed terminal
Suitable for degree of protection (IP)	IP20

Packing details

Packing level 1

4011377190238

Other Technical data

Colour	White
Halogen free	Yes
Number of units	1
Lockable	No
With hinged lid	No
Surface protection	Lacquered
With signal lamp	No
Number of phases	1
With enhanced contact protection	Yes
With on/off switch	No
Protective contact	Yes
Label space/information surface	No
Eject-mechanism	No
Material quality	Thermoplastic
Rotated central insert	No
Over voltage protection	No
Fault current protection	No
Special power supply	No special power supply
Material	Plastic
Type of fastening	Mounting with claw and screw
Transparent	No
Surface finishing	Matt
With miniature fuse	No
With loop through function	Yes
Device width	55 mm
Device height	55 mm
Number of socket outlets switchable	0
With function lighting	No
With orientation lighting	No
With built-in USB power supply	No
Number of active pins (round)	2
Protective earth pin round	Yes
Anti-bacterial treatment	No

Description

SCHUKO® socket 16 A / 250 V A1521BFKIWWM for standard mains connection in domestic and commercial power systems.Provides protective contact and screwed terminal connections, ensuring reliable electrical coupling. Rated Nominal Current:16 A.;Nominal Voltage:250 V.;Flush-mounted (plaster).;Halogen-free thermoplastic material;plastic base with lacquered surface protection.;Matt white finish, RAL color data not defined.Dimensions (W x H):55 mm x 55 mm;device depth unspecified.Equipped for IP20 degree of protection.No hinged lid or label space features present — plain configuration only.Protective earth pin round active;enhanced contact protection integrated into the socket design structure.Single-phase unit without active pins flat or USB functionality setups included here—no orientation lighting support implemented as part of visual safety provisions tightening unit level build continuation loop-through structured tail-spin tightened fastened монтаж εργασία
