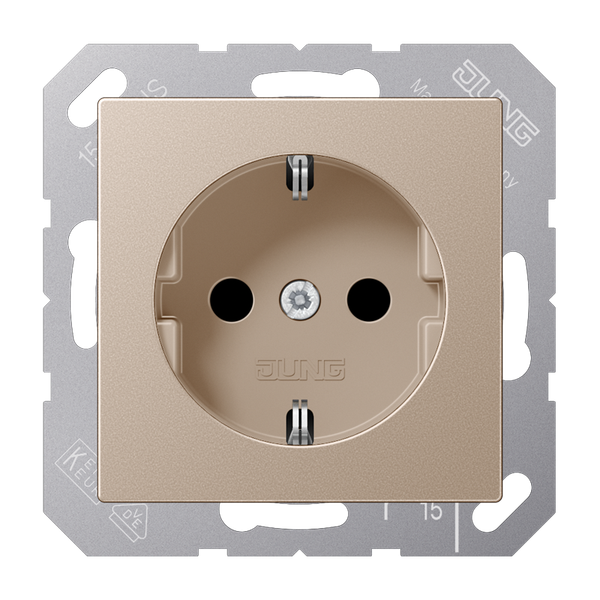

SCHUKO® socket A1520KICH

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

14,62 €

This price is valid until 24.12.25

EAN: 4011377112476

MPN: A1520KICH

Package: 1

Box: 10

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SCHUKO® socket A1520KICH
Brand	Jung
Categories	Sockets
Country of origin	DE
Harmonized System Code	8536 6990 00
Nominal current	16 A
Nominal voltage	250 V
Mounting method	Flush mounted (plaster)
Colour	Other
Model	Protective contact (type F)
Halogen free	Yes
Number of units	1
Lockable	No
With hinged lid	No
Connection type	Push-in clamp
Surface protection	Lacquered
With signal lamp	No
Number of phases	1
With enhanced contact protection	Yes
With on/off switch	No
Protective contact	Yes
Label space/information surface	No
Eject-mechanism	No
Material quality	Duroplast
Rotated central insert	No
Over voltage protection	No
Fault current protection	No
Special power supply	No special power supply
Material	Plastic
Type of fastening	Mounting with claw and screw
Transparent	No
Surface finishing	Matt
With miniature fuse	No
With loop through function	No
Suitable for degree of protection (IP)	IP20
Device width	55 mm
Device height	55 mm
Number of socket outlets switchable	0
With function lighting	No
With orientation lighting	No
With built-in USB power supply	No
Number of active pins (round)	2
Protective earth pin round	Yes
Anti-bacterial treatment	No

Packing details

Packing level 1	4011377112476
Packing level 2	4011377112476
Packing level 3	4011377112476

Description

SCHUKO® socket A1520KICH is used for providing secure connections to electrical power systems, compatible with standard protective contact plug setups.Ideal for residential and commercial flush-mounted applications. Rated nominal current:16 A.Nominal voltage:250 V.Protective contact:enabled.Connection type:push-in clamp.Impact strength data not provided but includes enhanced contact protection features suitable for IP20 environment class—no signal lamp or lighting functions integrated into the setup. Housing dimensions are approximately 55 mm width x 55 mm height;depth metrics unspecified.Material composition utilizes lacquered plastic (Duroplast variant) with halogen-free properties and matt surface finishing design without antibacterial treatments or metallic colors applied. Device operates on single-phase supply configurations with no USB power options or heavy-duty VDE-specific conditioning compatibility observed in evaluation logs so far. Flush mounting installation supports configurations using combined claw screws fastening only—label space information surface excluded entirely from fixed layout use contexts like end-user switchboards etc.,
