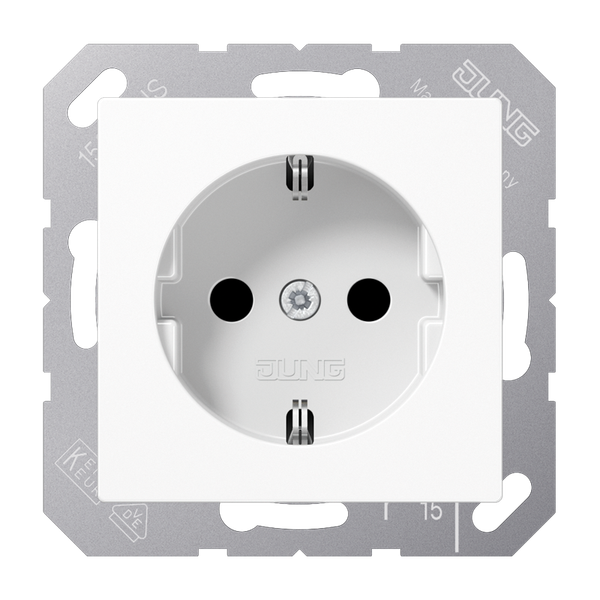

SCHUKO® socket A1520BFWW

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

4,10 €

This price is valid until 31.12.25

EAN: 4011377057531

MPN: A1520BFWW

Package: 1

Box: 10

Pallet: 3200

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	SCHUKO® socket A1520BFWW
Brand	Jung
Categories	Sockets
Country of origin	DE
Harmonized System Code	8536 6990 00
Nominal current	16 A
Nominal voltage	250 V
Mounting method	Flush mounted (plaster)
Colour	White
Model	Protective contact (type F)
Halogen free	Yes
Number of units	1
Lockable	No
With hinged lid	No
Connection type	Push-in clamp
Surface protection	Other
With signal lamp	No
Number of phases	1
With enhanced contact protection	No
With on/off switch	No
Protective contact	Yes
Label space/information surface	No
Eject-mechanism	No
Material quality	Thermoplastic
Rotated central insert	No
Over voltage protection	No
Fault current protection	No
Special power supply	No special power supply
Insulated mounting	No
Material	Plastic
Type of fastening	Mounting with claw and screw
RAL-number (similar)	9016
Transparent	No
Surface finishing	Glossy
With miniature fuse	No
With loop through function	Yes
Suitable for degree of protection (IP)	IP20
Device width	55 mm
Device height	55 mm
Number of socket outlets switchable	0
With function lighting	No
With orientation lighting	No
With built-in USB power supply	No
Number of active pins (round)	2
Protective earth pin round	Yes
Anti-bacterial treatment	No

Packing details

Packing level 1	4011377057531
Packing level 2	4011377057531
Packing level 3	4011377057531
Packing level 4	4011377057531

Downloads

Deep link REACH

Description

SCHUKO® socket A1520BFWW used for power distribution in residential or commercial electrical systems.Suitable for flush-mounted installations in plaster environments. Rated nominal voltage:250 V, nominal current:16 A.Frequency undefined.Protective contact present;round earth pin integrated.Material:plastic (thermoplastic), halogen-free construction.White color, glossy surface finish, RAL 9016 similar appearance code.Flush mounting method with claw and screw fastening included;requires no specific over-voltage or fault current protection features. IP20-rated protection classification.Device dimensions:width 55 mm, height 55 mm;minimum depth of installation box undetermined.Model type-F protective contact socket outfitted without hinged lid or lockable mechanism options. Single-phase connection supported via push-in clamp system configuration, suitable for standard electrical setups.Enhanced contact protection absent;unit comes unshielded with no orientation lighting or eject mechanisms embedded. System capable of loop-through function operation—providing daisy-chain wiring compatibility without additional tooling adjustments required during installation procedures in standard network branch designs.Not compatible with smart assistant ecosystems like Google Assistant/Alexa/HomeKit integrations nor equipped USB power functions/device-specific mini circuit protections or internal fuses infrastructure lacking secondary custom-actuated energy relay overrides reserve expansion cases mechanical-layer fail following spec non-output
