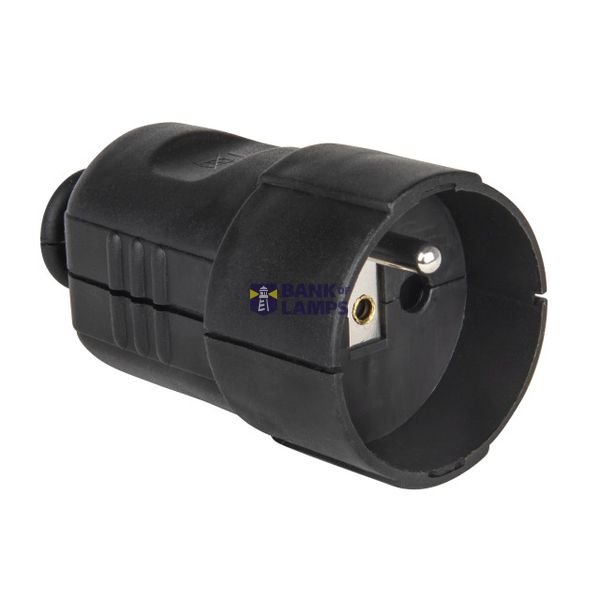

MD01 image 1

Schuko connector

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Schuko connector
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC001327
Nominal current 16 A
Nominal voltage 250 V
Colour Black
Model Earthing pin
Material quality Thermoplastic
Number of poles 3
Material Plastic
Connection system Screwed terminal
Angle of plug Straight
Suitable for protective contact pin Yes
Degree of protection (IP) IP20
For heavy conditions according to VDE No

Packing details

Packing level 1 9003399632860

Downloads

Description

safety connector PP fb central black IP20
housing material: polypropylen (PP)
cable entry: central
housing color: black
earthing system: French/Belgian standard
250V 16A 2P+E
protection rating: IP20
