Schrems BV 32/5 16/5 3xSSD 2m5G6St NM5Ea
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Schrems BV 32/5 16/5 3xSSD 2m5G6St NM5Ea |
| Brand | PCE |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC000379 |
| Handling | Portable |
| Contact material | CuZn |
| Degree of protection (IP) | IP54 |
Packing details
| Packing level 1 | 9003399394720 |
Other Technical data
| Colour | Black |
| Width | 400 mm |
| Height | 255 mm |
| Depth | 300 mm |
| Number of socket outlets with protective contact (type F) | 3 |
| Cable length | 2 m |
| Housing material | Rubber |
| Leakage current type | A |
| Earth leakage switch | Earth leakage switch with IFN 30 mA (standard) |
| CEE socket outlet 16 A | 1x16A5p400V |
| CEE socket outlet 32 A | 1x32A5p400V |
| Power supply/connection possibility | Feeder cable with plug |
| Number of miniature circuit breakers | 4 |
| Type of mains connection | CEE 32 A |
| Number of poles mains connection | 5 |
Downloads
Description

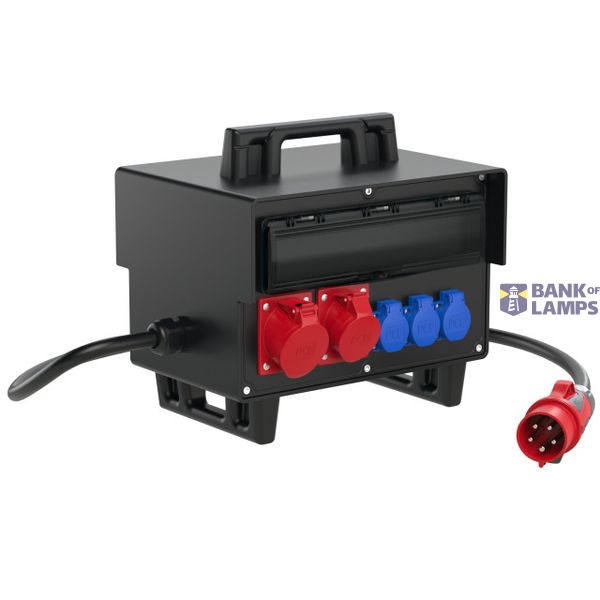

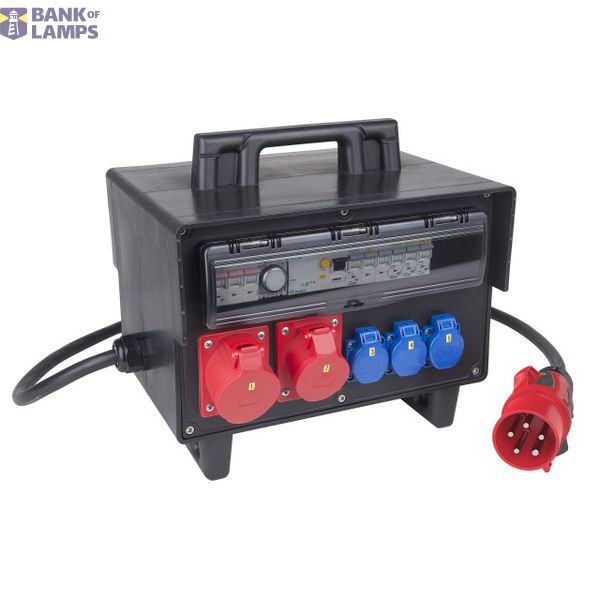

mobile solid rubber distribution box series SCHREMS IP54 255x400x300
2m cable H07RN-F 5G6mm2 black with plug 32A 5p 400V
1x CEE socket 32A 5p 400V protected with pre-fusing supply chain
1x CEE socket 6A 5p 400V protected with 1x MCB 16A 3p C
3x Schuko socket 16A 250V IP54 protected with 3x MCB 16A 1p C
1x MCB 10A 3p B
1x RCD 63A/4/0.03A (TYP A 40AT) over all outlets
1x NM5p
2x Lastschütz 15kW AC3
MCB and RCD made by Eaton ÖVE/VDE
distribution box is ready wired for using
