SCHEIDER 3P 32A VEERKLEM

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

40,25 €

This price is valid until 24.12.25

EAN: 3389110273069

MPN: LS1D323

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SCHEIDER 3P 32A VEERKLEM
Brand	Schneider Electric
Categories	Fuse Switch Disconnectors
Country of origin	MX
Harmonized System Code	8536 5080 00
Rated permanent current Iu	25 A
Number of poles	3
Degree of protection (IP), front side	IP20
Suitable for fuses	10x38 mm
Version as main switch	No
Version as safety switch	No
Rated operation power at AC-23, 400 V	11 kW
Max. rated operation voltage Ue AC	690 V

Packing details

Packing level 1

3389110273069

Other Technical data

Cable entry	Other
Conditioned rated short-circuit current Iq	50 kA
Motor drive integrated	No
Type of electrical connection of main circuit	Spring clamp connection
Version as emergency stop installation	No
Type of control element	Rocker lever
Rated short-time withstand current lcw	50 kA
Suitable for floor mounting	No
Suitable for front mounting	No
Suitable for busbar mounting	No
With error protection	No
Motor drive optional	No
Position control element	Front side
Equipped with connectors	No

Description

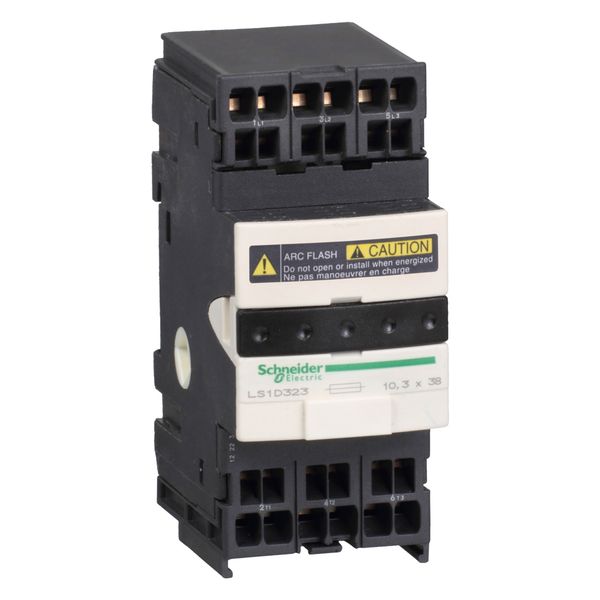

TeSys LS fuse carrier block, 3 poles (3P), for protection of motors and transformers up to 25A/690V. To be used with 10x38mm fuse links up to 25A and short circuit current up to 100kA@400V. It provides a front handle. Compact (45mm width), it can be used in modular panels, clipping on 35mm DIN rail or screw fixing on panel, connection by spring terminals, padlockable. Fuse links (10x38mm aM, gG type) and add-on auxiliaries, auxiliary signaling contact block, external handles for RH or LH side, additional contact block for 4 poles applications) are available (to be ordered separately). Multi standards certified (IEC, UL recognized), Green Premium product (RoHS/REACh).
