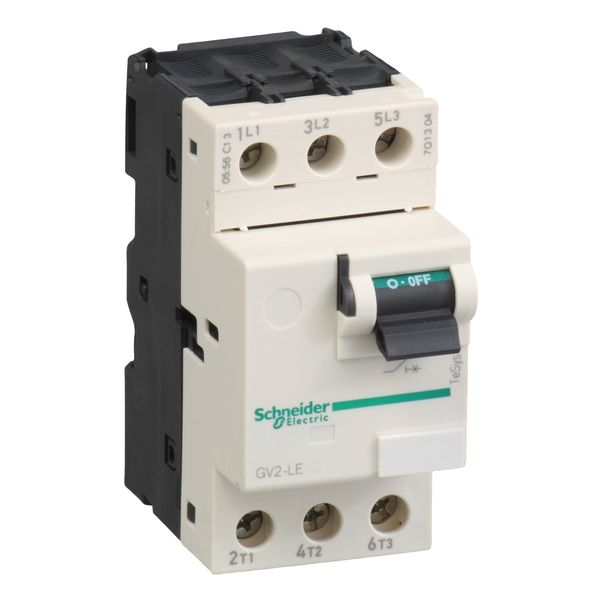

SCHEID.VERM.SCH. 4A 15KA 400V

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

48,79 €

This price is valid until 31.12.25

EAN: 3389110516937

MPN: GV2LE08

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	SCHEID.VERM.SCH. 4A 15KA 400V
Brand	Schneider Electric
Categories	Motor protection circuit-breakers
Country of origin	FR
Harmonized System Code	8536 2010 00
Width	45 mm
Height	89 mm
Depth	78.5 mm
Rated operation power at AC-3, 400 V	1.5 kW
With integrated auxiliary switch	No
Rated permanent current Iu	4 A
With integrated under voltage release	No
Number of poles	3
Rated operating voltage	690 V
Degree of protection (IP)	IP20
With thermal protection	No
Type of electrical connection of main circuit	Screw connection
Type of control element	Rocker lever
Switch off technique	Magnetic
Rated operation power at AC-3, 230 V	0.75 kW
Rated short-circuit breaking capacity lcu at 400 V, AC	100 kA
Adjustment range undelayed short-circuit release	51 A
Phase failure sensitive	Yes
Device construction	Complete device in housing

Packing details

Packing level 1

3389110516937

Description

TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1-1.5kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD08 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
