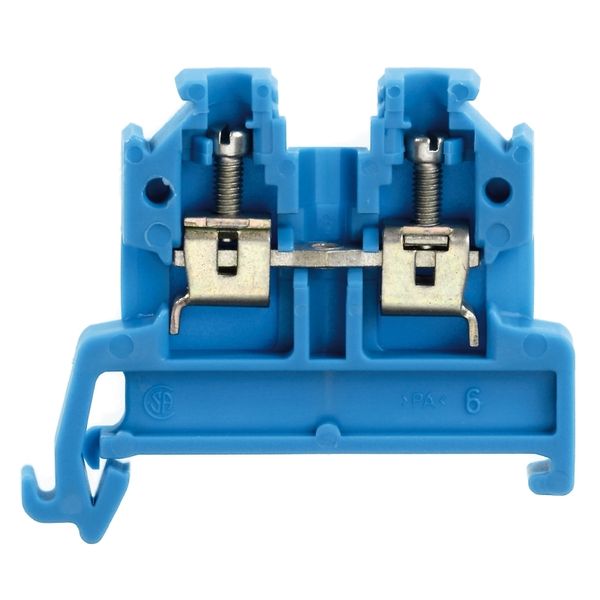

Feed-through terminal block, Screw connection, blue, 2.5 mm², 24 A, 500 V, Number of connections: 2 image 1
Weidmüller

Feed-through terminal block, Screw connection, blue, 2.5 mm², 24 A, 500 V, Number of connections: 2

Order only Minimal order quantity: 100
Price (excl. VAT):
1,80 €
This price is valid until 19.12.25
Subtotal: 180,00 € MOQ: 100
EAN: 4008190061951
MPN: 0268880000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Feed-through terminal block, Screw connection, blue, 2.5 mm², 24 A, 500 V, Number of connections: 2
Brand Weidmüller
Categories DIN Rail Terminal Blocks
Country of origin* CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 500 V
Type of electrical connection 1 Screw connection
Number of levels 1
Number of clamp positions per level 2
Connectable conductor cross section solid-core 0.5-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.5-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.5-4 mm²
Connectable conductor cross section multi-wired 0.5-4 mm²
Rated current In 24 A

Packing details

Packing level 1 4008190061951

Other Technical data

Colour Blue
Width 5 mm
Height 44 mm
Depth 38 mm
Operating temperature -50-100 °C
Inflammability class of insulation material according to with UL94 V2
Closing plate required Yes
Internally connected stages No
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' No

Description

Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
