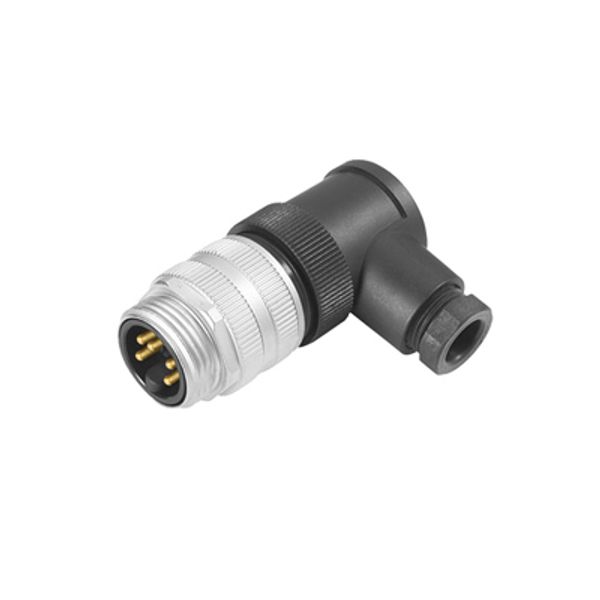

Field attachable connector, 7/8"
Order Only
Price (excl. VAT):
37,00 €
EAN: 4032248281367
MPN: 1808830000
Box: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Field attachable connector, 7/8" |
| Brand | Weidmüller |
| Categories |
Circular Connectors
|
| Country of origin | DE |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 250 V |
| Contact type | Pin |
| Connectable conductor cross section multi-wired | 0.5-1.5 mm² |
| Degree of protection (IP), mounted | IP67 |
| Rated current In | 9 A |
| For cable outer diameter | 6-8 mm |
| Number of power contacts | 4 |
| Number of control contacts | 4 |
| Number of data contacts | 4 |
Packing details
| Packing level 1 | 4032248281367 |
Other Technical data
| Locking mechanism | Gland nut |
| Screened | No |
| Housing material | Plastic |
| Coating housing | Plastic-coated |
| Type of electric connection | Screw connection |
| Material of contact surface | Gold |
| Pollution degree | 3 |
| Type of housing | Angled |
| Connectable conductor cross section solid-core | 0.5 mm² |
| Material thread ring | Zinc die-cast |
Description
Circular connectors for the individual assembly of conductors. Space-saving design.
