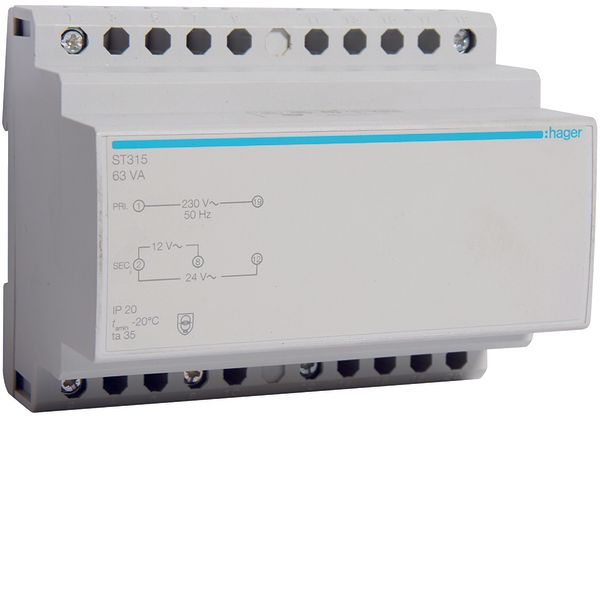

Safety Transformer 63VA 230V12-24 V
Order only
EAN: 3250615703156
MPN: ST315
Package: 1
Box: 2
Pallet: 384
Price (excl. VAT)
71,46 €
per pcs
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | Safety transformer 63VA 230V12-24V |
| Brand | Hager |
| Categories |
Bell transformer
|
| Harmonized System Code | 8504 3121 00 |
| ETIM | EC001547 |
| Type of transformer | Safety transformer |
| Max. output power | 63 W |
| Primary voltage | 230 V |
| Secondary voltage 1 | 12 V |
| Secondary voltage 2 | 24 V |
| Secondary amperage 1 | 5.25 A |
| Secondary amperage 2 | 2.63 A |
Packing details
| Packing level 1 | 3250615703156 |
| Packing level 2 | 3250615703156 |
| Packing level 3 | 3250615703156 |
| Packing level 4 | 3250615703156 |
Other Technical data
| Width | 105 mm |
| Height | 68 mm |
| With on/off switch | No |
| Modular version | Yes |
| Length | 85 mm |
| Width in number of modular spacings | 6 |
| Surface mounting | Yes |
| Short-circuit protected | Yes |
| Temperature protection | Yes |
| Max. power loss | 4.5 W |
| Flush-mounted installation | No |
Downloads
Description
Safety transformer 63VA 230V12-24V
