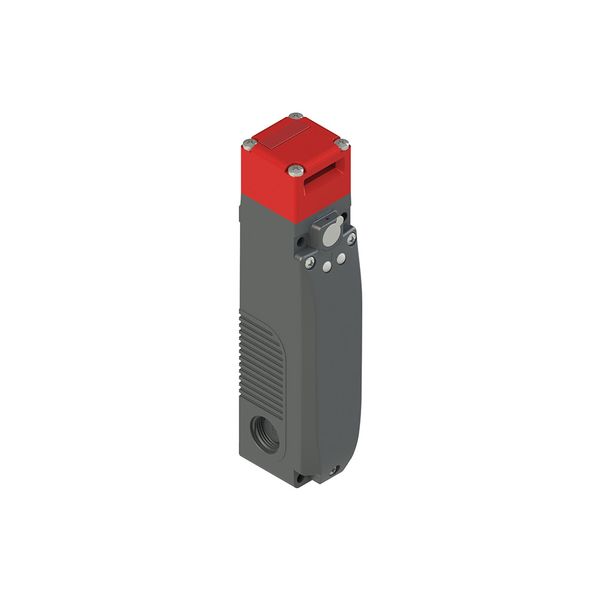

FY series safety switch with separate actuator with lock

Order only

Price (excl. VAT):

131,66 €

This price is valid until next price list or while stock lasts

EAN: 8018851597824

MPN: FY 61BD1E0A

Package: 1

Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition	New
Manufacture name	FY series safety switch with separate actuator with lock
Brand	Pizzato Elettrica
Categories	Position Switches
Harmonized System Code	8536 9095 00
ETIM	EC002592

Packing details

Packing level 1

8018851597824

Downloads

Technical manual Product data sheet

Description

FY series safety switch with separate actuator with lock, Housing: Technopolymer housing, three M20x1,5 cable entries, Contact block: 2NO+2NC moved by actuator , Head: Rotating head, Working method: E working method, locked actuator with energized solenoid, Power: 24 Vac/dc, LED: 2 green LED switched-on by the solenoid power supply, Actuator: Without actuator , Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.
