FG series safety switch with separate actuator with lock

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

135,14 €

This price is valid until 31.12.25

EAN: 8018851119194

MPN: FG 60CD7D0A

Package: 1

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	FG series safety switch with separate actuator with lock
Brand	Pizzato Elettrica
Categories	Position Switches
With escape release	Yes
Guard locking force	3000 N
With auxiliary release	Yes

Packing details

Packing level 1

8018851119194

Downloads

Technical manual Product data sheet

Description

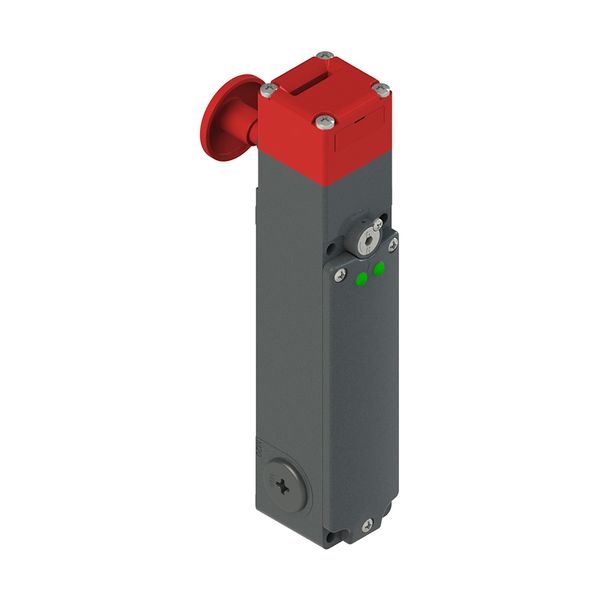

FG series safety switch with separate actuator with lock, Protection degree: IP67 according to EN 60529 with cable gland having equal or higher protection degree, Working method: D working method, locked actuator with de-energized solenoid, Housing: Metal housing, three M20x1,5 cable entries, Contact block: 1NC moved by actuator and 3NC moved by solenoid, Head: Rotating head with escape pushbutton, Power: 24 Vac/dc, LED: 2 green LED switched-on by the solenoid power supply, Actuator: Without actuator , Positive opening: Yes.
