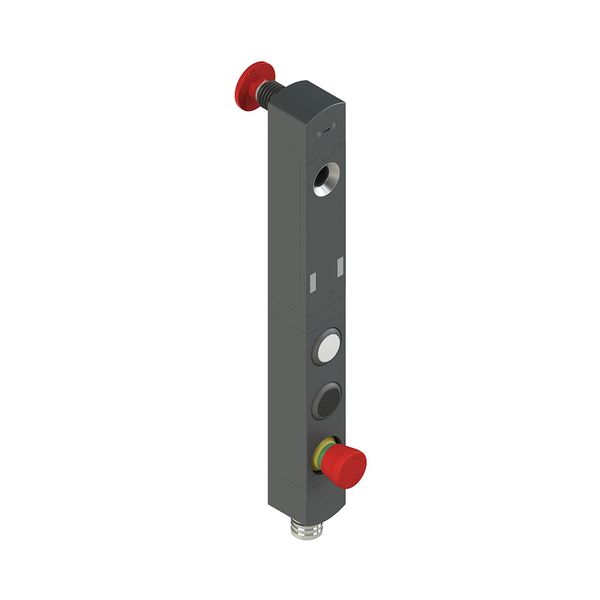

NS series safety switch with lock and integrated control devices

Order only

Price (excl. VAT):

366,81 €

This price is valid until 31.12.25

EAN: 8018851524981

MPN: NS D4CE1STK-N003

Package: 1

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	NS series safety switch with lock and integrated control devices
Brand	Pizzato Elettrica
Categories	Position Switches
Suitable for safety functions	Yes
With status indication	Yes
With escape release	Yes
Guard locking force	2100 N
With auxiliary release	Yes
Type of guard locking	Operating current principle

Packing details

Packing level 1

8018851524981

Other Technical data

Housing material	Plastic
Coating housing	Other
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Degree of protection (IP)	IP67

Downloads

Product data sheet Technical manual

Description

NS series safety switch with lock and integrated control devices, Working method: D working method, locked actuator with de-energized solenoid; Mode 1: OS safety outputs active with locked protection, Output connection direction: Cable or connector at bottom, Housing: Technopolymer housing, Inputs and outputs : 2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3: actuator inserted, ; 1 signalling output O4: actuator locked, ; 2 solenoid activation inputs IE1-IE2, ; 1 programming / reset input I3, Actuator: Without actuator , Auxiliary release with variable orientation: Front screw release and rear emergency pushbutton, Position 3: 1 red emergency pushbutton, turn to release, 2NC , Position 1: 1 pushbutton white 1NO, Position 2: 1 pushbutton black 1NO, Button configuration: 3 devices, Protection degree: IP65 according to EN 60529.
