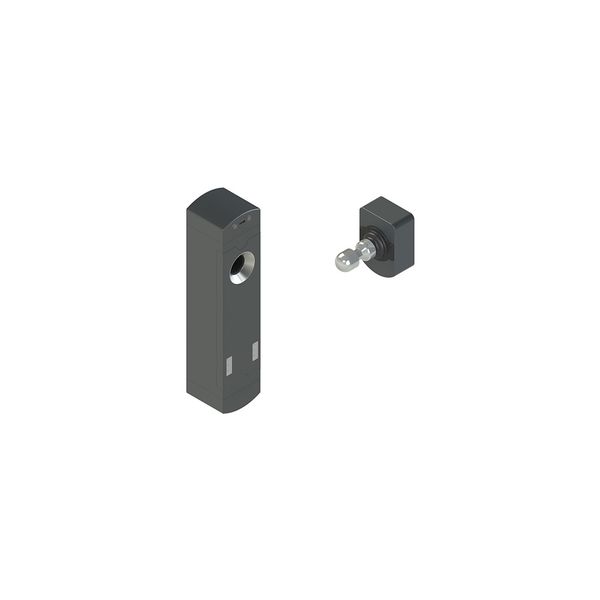

NS series safety locking switch, with actuator

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

226,95 €

This price is valid until 31.12.25

EAN: 8018851518607

MPN: NS L4AZ1DMK-F40

Package: 1

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	NS series safety locking switch, with actuator
Brand	Pizzato Elettrica
Categories	Position Switches
Suitable for safety functions	Yes
With status indication	Yes
Guard locking force	2100 N
With auxiliary release	Yes

Packing details

Packing level 1

8018851518607

Other Technical data

Housing material	Plastic
Coating housing	Other
Type of electric connection	Connector M12
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Degree of protection (IP)	IP67

Downloads

Product data sheet Technical manual

Description

NS series safety locking switch, with actuator, Housing: Technopolymer housing, Inputs and outputs : 2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3: actuator inserted, ; 1 signalling output O4: actuator locked, ; 2 solenoid activation inputs IE1-IE2, ; 1 programming / reset input I3, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Actuator: Complete with universal actuator with low coding level VN NS-F40, Auxiliary release with variable orientation: Front screw release, Working method: L working method, locked actuator with de-energised solenoid; Mode 3: first safety output active with inserted and locked actuator, second safety output active with inserted actuator, Button configuration: No device, Output connection direction: Side cable or connector, Type of connection: M12 connector, 12-pole.
