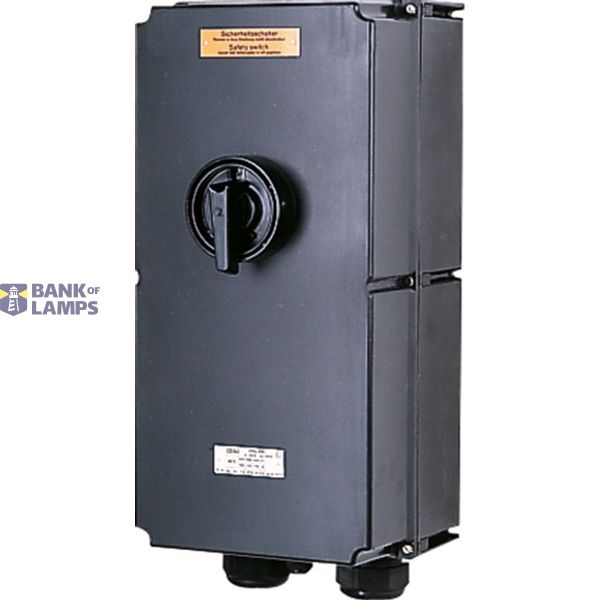

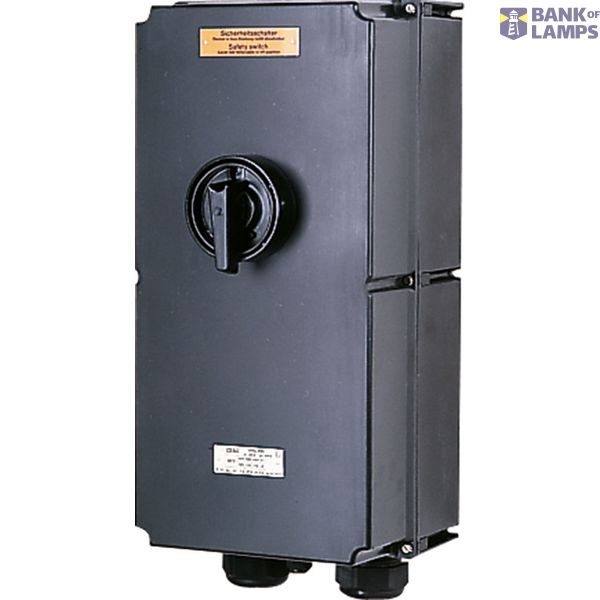

Safety switch 125A-3POL
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Safety switch 125A-3POL |
| Brand | EATON |
| ETIM | EC000216 |
| Number of poles | 3 |
| Rated operating voltage | 0-690 V |
| Degree of protection (IP), front side | IP66 |
Packing details
| Packing level 1 | 4251958114387 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | 1 |
| Interlockable | Yes |
| Motor drive integrated | No |
| Colour control element | Black |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | No |
| Suitable for intermediate mounting | No |
| Max. rated operation voltage Ue AC | 690 V |
| Motor drive optional | No |
| Device construction | Complete device in housing |
| Rated permanent current at AC-21, 400 V | 125 A |
| Degree of protection (NEMA) | Other |
Description
Safety switch 125A-3POL, Zone 1/21, Cable entry: 2x M63
