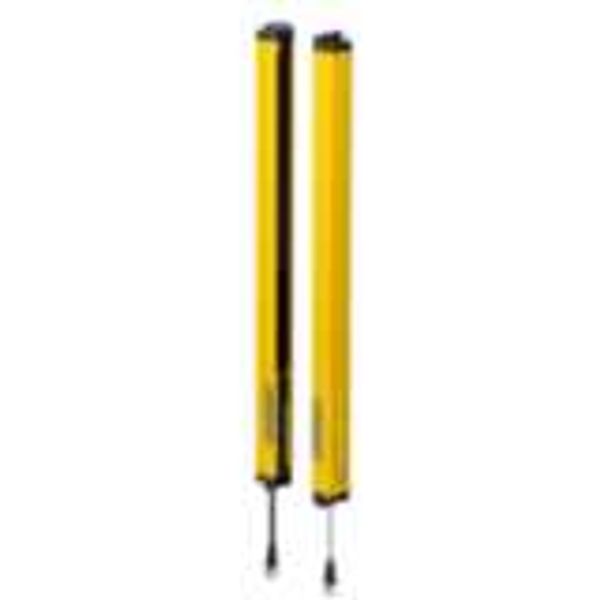

Safety Sensor, F3SG-R Easy, Type 4, 14 mm resolution, range 0.3 to 10. F3SG6122H
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
1 402,14 €
EAN: 4549734103251
MPN: F3SG-4RE1040P14
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Safety Sensor, F3SG-R Easy, Type 4, 14 mm resolution, range 0.3 to 10. F3SG6122H |
| Brand | Omron |
| Categories |
Photoelectric Sensors
|
| Country of origin | NL |
| Harmonized System Code | 8536 5019 00 |
| Number of semiconductor outputs with signalling function | 0 |
| Number of contact energized outputs with signalling function | 0 |
| Number of protected semiconductor outputs | 2 |
| Number of protected contact energized outputs | 0 |
| Type of interface for safety communication | Other |
| Type of switching output of the OSSD | PNP |
| Type of electric connection | Connector M12 |
| Operation agent-safety class | Safety class 3 |
| Scope of delivery of the one-way system | Transmitter and receiver |
| Max. output current at protected output | 300 mA |
Packing details
| Packing level 1 | 4549734103251, 4549734103251 |
Other Technical data
| Voltage type | DC |
| Cascadable | No |
| Suitable for safety functions | Yes |
| Ambient temperature | -10-55 °C |
| Fade-out possible | No |
| Rated control supply voltage at DC | 19.2-28.8 V |
| Detection capability for test bodies | 14 mm |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| With monitoring function downstream switching devices | No |
| With restart blockage | No |
| With muting function | No |
| Override possible | No |
| Response time | 9 ms |
| Reduced resolution | No |
| Transmission range of the safety field | 10 m |
| Switching voltage of OSSD at state "high" | 24 V |
| Safety field height | 1040 mm |
| Type of safety according to IEC 61496-1 | 4 |
| With beam coding | No |
| Wavelength of the sensor | 870 nm |
| Degree of protection (IP) | IP67 |
| Resolution of the light curtain | 10 mm |
| Width sensor | 35 mm |
| Height of sensor | 35 mm |
| Length of sensor | 1070 mm |
| Degree of protection (NEMA) | Other |
Downloads
Description
Safety Sensor, F3SG-R Easy, Type 4, 14 mm resolution, range 0.3 to 10.0 m, height 1040 mm, PNP
