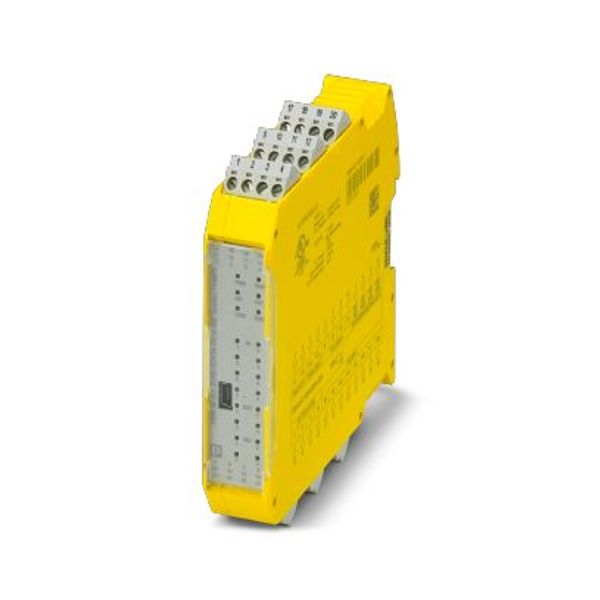

PSR-M-B2-SDI8-SDO4-DO4-SC - Safety module image 1
PSR-M-B2-SDI8-SDO4-DO4-SC - Safety module image 2
PSR-M-B2-SDI8-SDO4-DO4-SC - Safety module image 3
PSR-M-B2-SDI8-SDO4-DO4-SC - Safety module image 4
PSR-M-B2-SDI8-SDO4-DO4-SC - Safety module thumbnail 1
PSR-M-B2-SDI8-SDO4-DO4-SC - Safety module thumbnail 2
PSR-M-B2-SDI8-SDO4-DO4-SC - Safety module thumbnail 3
PSR-M-B2-SDI8-SDO4-DO4-SC - Safety module thumbnail 4
Phoenix Contact

PSR-M-B2-SDI8-SDO4-DO4-SC - Safety module

In vendor's stock
Price (excl. VAT):
412,53 € per pcs
This price is valid until 31.12.25
EAN: 4055626973258
MPN: 1104974
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name PSR-M-B2-SDI8-SDO4-DO4-SC - Safety module
Brand Phoenix Contact
Categories Safety Relays
Country of origin IT
Harmonized System Code 8537 1098 00
Model Basic device
Number of outputs, safety related, undelayed, with contact 0
Type of electric connection Screw connection
Rail mounting possible Yes

Packing details

Packing level 1 4055626973258, 4055626973258

Other Technical data

Width 22.61 mm
Height 112.58 mm
Depth 113.6 mm
With approval according to UL Yes
With detachable clamps Yes
With start input No
With feedback circuit No
Number of outputs, safety related, delayed, with contact 0
Number of outputs, safety related, undelayed, semiconductors 0
Number of outputs, safety related, delayed, semiconductors 0
Number of outputs, signalling function, undelayed, with contact 0
Number of outputs, signalling function, delayed, with contact 0
Number of outputs, signalling function, undelayed, semiconductors 0
Number of outputs, signalling function, delayed, semiconductors 0
Rated control supply voltage at DC 24 V
With muting function No
With approval for BG BIA No
Suitable for monitoring of magnetic switches Yes
Suitable for monitoring of proximity switches No
Suitable for monitoring of emergency-stop circuits Yes
Suitable for monitoring of optoelectronic protection equipment Yes
Suitable for monitoring of position switches Yes
Suitable for monitoring of tactile sensors No
Suitable for monitoring of valves No
Stop category according to IEC 60204 Other
Voltage type for actuating DC
Evaluation inputs Other

Description

Configurable safety module (basic module), 8 safe inputs, 4 safe outputs, 4 reset inputs or 4 signal outputs, 4 clock outputs, can be extended via TBUS, up to SIL 3, Cat. 4/PL e, plug-in screw terminal block, TBUS connector not included
