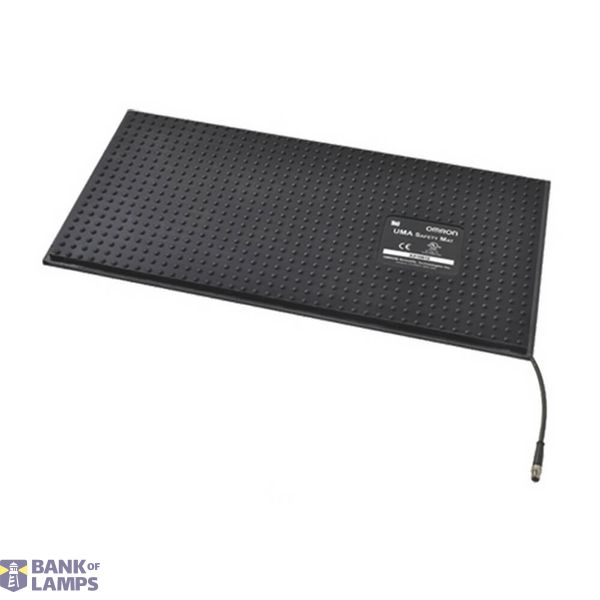

Safety mat black with 1-cable, 500 x 250 mm dimension UMMA7014M
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Safety mat black with 1-cable, 500 x 250 mm dimension UMMA7014M |
| Brand | Omron |
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9031 4990 00 |
| ETIM | EC002887 |
| Width | 250 mm |
| Model | Safety mat |
| Height | 12.7 mm |
| Length | 500 mm |
Packing details
| Packing level 1 | 4549734115254, 4549734115254 |
Other Technical data
| Colour | Black |
| Material | Polyurethane (PUR) |
| Ambient temperature | -10-55 °C |
| Length of connection cable | 0.13 m |
| Number of semiconductor outputs with signalling function | 0 |
| Degree of protection (IP) | IP65 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Max. operating voltage (Umax) | 28.8 V |
| Required switching force with 80 mm diameter | 300 N |
| Max. force with 80 mm diameter | 2000 N |
| Max. force per cm² | 186.2 N |
| With edge trim | No |
Downloads
Description
Safety mat black with 1-cable, 500 x 250 mm dimension
