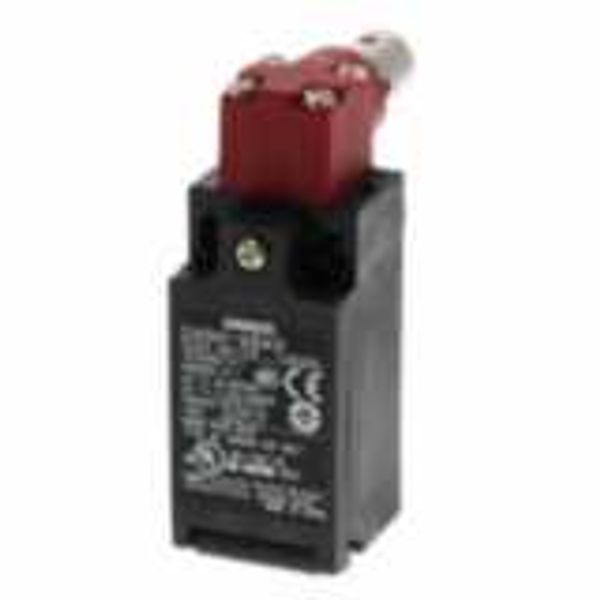

Safety Limit switch, D4NH, M20 (1 conduit), 2NC/1NO (MBB contact/slow- D4NH0090B
Order only
Price (excl. VAT):
62,93 €
EAN: 4547648046176
MPN: D4NH-4FAS
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Safety Limit switch, D4NH, M20 (1 conduit), 2NC/1NO (MBB contact/slow- D4NH0090B |
| Brand | Omron |
| Categories |
Position Switches
|
| Country of origin | NL |
| Harmonized System Code | 8536 5015 00 |
| Suitable for safety functions | Yes |
| With status indication | No |
| Type of switching contact | Slow-action switch |
| Forced opening | Yes |
| Number of safety auxiliary contacts | 31 |
| Type of control element | Full shaft |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
Packing details
| Packing level 1 | 4547648046176, 4547648046176 |
Other Technical data
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Rated operation current Ie at DC-13, 230 V | 0.27 A |
| Housing material | Plastic |
| Coating housing | Other |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Special construction |
| Degree of protection (IP) | IP67 |
| Type of interface | None |
| Rated operation current Ie at AC-15, 125 V | 3 A |
| Rated operation current Ie at AC-15, 24 V | 3 A |
| Rated operation current Ie at DC-13, 125 V | 0.27 A |
| Rated operation current Ie at DC-13, 24 V | 0.27 A |
| Width sensor | 31 mm |
| Height of sensor | 30 mm |
| Length of sensor | 82.5 mm |
| Degree of protection (NEMA) | Other |
Downloads
Description
Safety Limit switch, D4NH, M20 (1 conduit), 2NC/1NO (MBB contact/slow-action), shaft actuator
