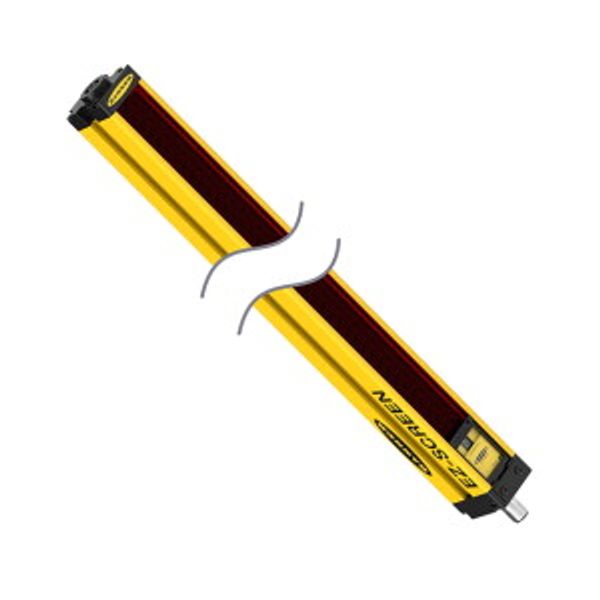

Safety Light Curtain Receiver SLSR30-1650Q8
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 0662488712587
MPN: 3071258
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Safety Light Curtain Receiver SLSR30-1650Q8 |
| Brand | Banner |
| Categories |
Photoelectric Sensors
|
| Country of origin | MX |
| Harmonized System Code | 8536 5019 00 |
| Number of protected semiconductor outputs | 2 |
| Type of switching output of the OSSD | PNP |
| Type of electric connection | Connector M12 |
| Max. output current at protected output | 500 mA |
Packing details
| Packing level 1 | 0662488712587, 0662488712587 |
Other Technical data
| Cascadable | No |
| Suitable for safety functions | Yes |
| Ambient temperature | 0 °C |
| Fade-out possible | Yes |
| With monitoring function downstream switching devices | No |
| With restart blockage | Yes |
| With muting function | No |
| Override possible | No |
| Response time | 30 ms |
| Reduced resolution | No |
| Safety field height | 1650 mm |
| With beam coding | No |
| Clock control possible | No |
| Resolution of the light curtain | 30 mm |

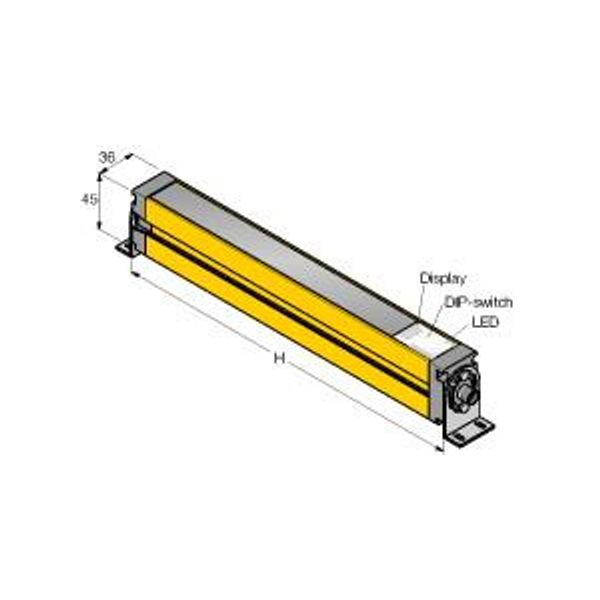

| Width sensor | 36 mm |
| Height of sensor | 1719 mm |
| Length of sensor | 45 mm |
Downloads
Description
Ontvanger, Bedrijfsspanning 20…28 VDC, max. reikwijdte 18000 mm, Connector M12 × 1, 8-polig, Onderdrukkingsfunctie, Beschermingsklasse IP65, Instelling via DIP-switch, Bedrijfsspanning 24 VDC ± 15 %, Resolutie 30 mm, Scangebied 1650 mm, Alle apparaten incl. twee EZA-MBK-11 montagebeugels; extra uitrusting met een lengte van 900 mm of meer incl. één EZA-MBK-12, Personeelsveiligheid categorie 4, PL e conform EN ISO 13849‐1:2008, Type 4 conform IEC 61496‐1,‐2, SIL 3 conform IEC 61508
