Safety Light Curtain Receiver SLPMR14-970P12
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 0662488844578
MPN: 3084457
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Safety Light Curtain Receiver SLPMR14-970P12 |
| Brand | Banner |
| Categories |
Photoelectric Sensors
|
| Country of origin | US |
| Harmonized System Code | 8536 5019 00 |
| Number of protected semiconductor outputs | 2 |
| Type of switching output of the OSSD | PNP |
| Type of electric connection | Connector M12 |
| Max. output current at protected output | 500 mA |
Packing details
| Packing level 1 | 0662488844578, 0662488844578 |
Other Technical data
| Cascadable | No |
| Suitable for safety functions | Yes |
| Ambient temperature | 0 °C |
| Fade-out possible | Yes |
| With monitoring function downstream switching devices | No |
| With restart blockage | Yes |
| With muting function | Yes |
| Override possible | No |
| Response time | 25.5 ms |
| Reduced resolution | No |

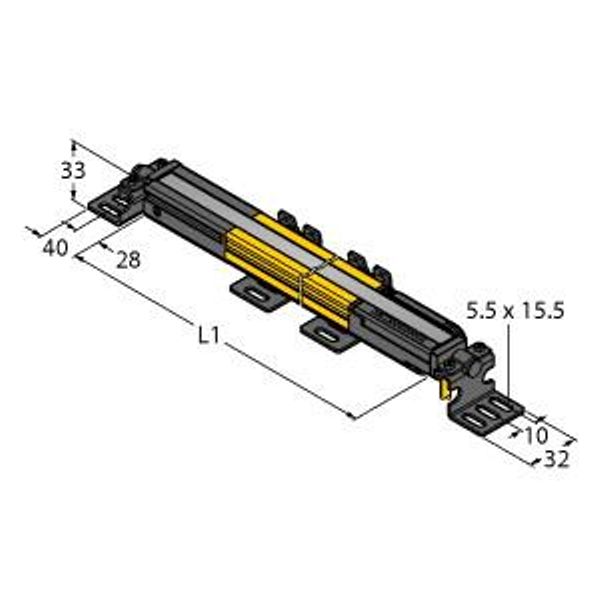

| Safety field height | 970 mm |
| With beam coding | No |
| Clock control possible | No |
| Resolution of the light curtain | 14 mm |
| Width sensor | 28 mm |
| Height of sensor | 969 mm |
| Length of sensor | 26 mm |
Downloads
Description
Veiligheidslichtgordijn, ontvanger, Geïntegreerde muting-functie, Bedrijfsspanning 20…28 VDC, max. reikwijdte 7000 mm, Kabellengte 0.3 m, kabel met connector, 300 mm, M12x1, 8-polig, beschermingsgraad IP65, vlakke behuizing zonder dode zone, instelling via DIP-switch, instelling gereduceerde resolutie, blanking functie, bedrijfsspanning: 24 VDC ± 15 %, resolutie 14 mm, bewakingshoogte 970 mm (L1), bevestigingsbeugel meegeleverd
