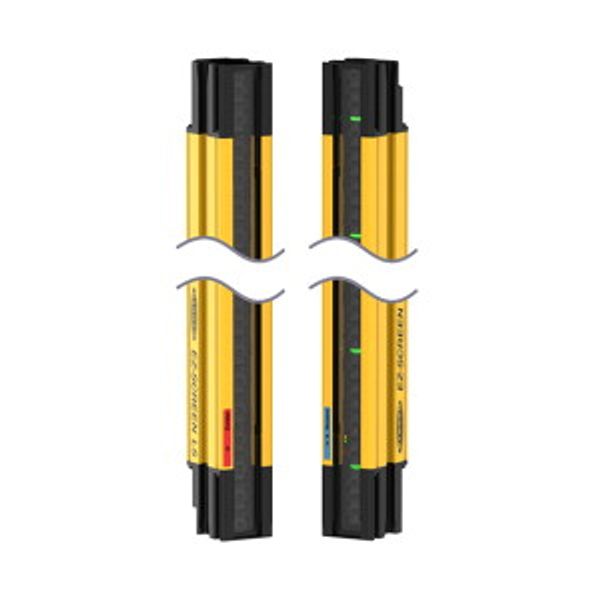

Safety Light Curtain Pair SLLCP23-980P88
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 0662488897680
MPN: 3089768
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Safety Light Curtain Pair SLLCP23-980P88 |
| Brand | Banner |
| Categories |
Photoelectric Sensors
|
| Country of origin | MX |
| Harmonized System Code | 8536 5019 00 |
| Number of protected semiconductor outputs | 2 |
| Type of switching output of the OSSD | PNP |
| Type of electric connection | Connector M12 |
| Max. output current at protected output | 500 mA |
Packing details
| Packing level 1 | 0662488897680, 0662488897680 |
Other Technical data
| Cascadable | Yes |
| Suitable for safety functions | Yes |
| Ambient temperature | -20 °C |
| Fade-out possible | Yes |
| With monitoring function downstream switching devices | No |
| With restart blockage | Yes |
| With muting function | No |
| Override possible | No |
| Response time | 16.7 ms |
| Reduced resolution | No |
| Safety field height | 980 mm |
| With beam coding | No |
| Clock control possible | No |
| Resolution of the light curtain | 23 mm |

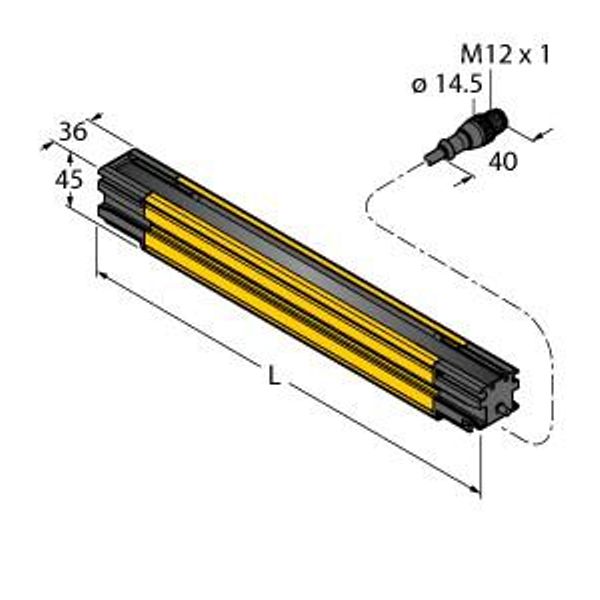

| Width sensor | 36 mm |
| Height of sensor | 985 mm |
| Length of sensor | 45 mm |
Downloads
Description
Veiligheidslichtgordijn, Paar, In cascade monteerbaar, Bedrijfsspanning 20.4…27.6 VDC, max. reikwijdte 12000 mm, Kabellengte 0.3 m, Robuuste behuizing, beschermingsgraad IP67, Diagnosedisplay voor het weergeven van de toestand en fouten, Bewakingsveldhoogte L: 980 mm, Optische uitlijningshulp, Geen blinde zone, reikwijdte: 0.1…12 m, resolutie: 23 mm, bedrijfsspanning: 24 VDC, Automatische cascadeconfiguratie, Geen heropstartvergrendeling, Veiligheidslichtgordijn type 4 conform IEC 61496-1 & 61496-2, Categorie 4 Ple conform EN ISO 13849-1, SIL 3 conform IEC 61508 & SIL 3 CL3 conform IEC 62061, Schok- en trilbestendig conform IEC 61496-1
