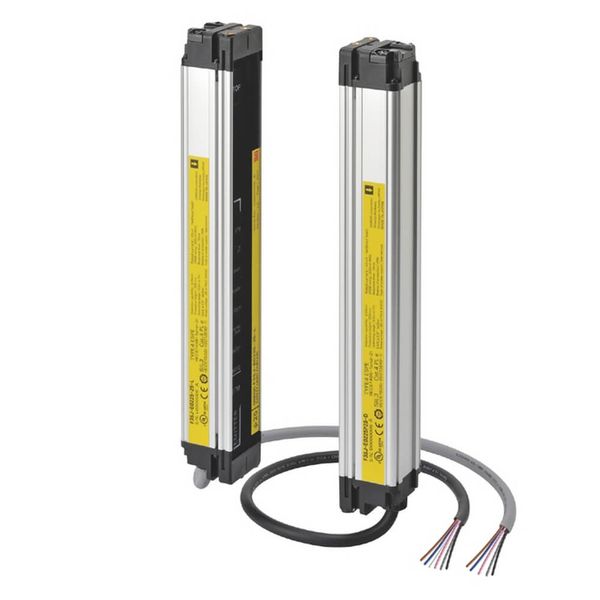

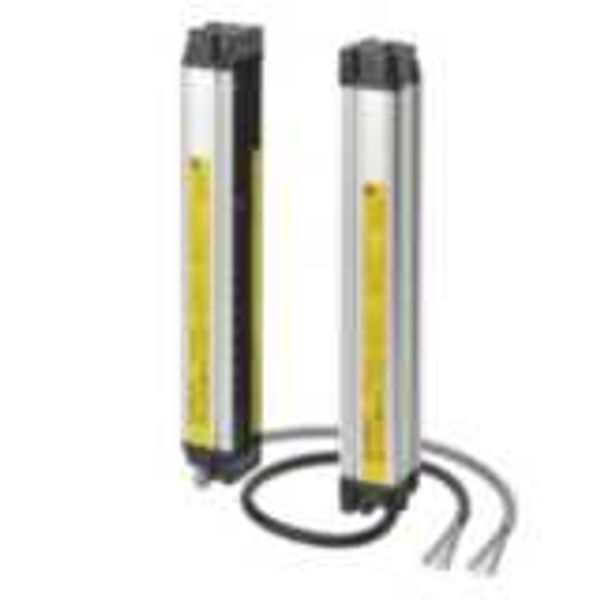

Safety Light Curtain, F3SJ Easy, Type 4, 25 mm resolution, range 0.2 t F3SE0009B

Order only

Price (excl. VAT):

924,28 €

This price is valid until 24.12.25

EAN: 4548583047730

MPN: F3SJ-E0785P25

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Safety Light Curtain, F3SJ Easy, Type 4, 25 mm resolution, range 0.2 t F3SE0009B
Brand	Omron
Categories	Photoelectric Sensors
Country of origin	NL
Harmonized System Code	8536 5019 00
Number of semiconductor outputs with signalling function	0
Number of contact energized outputs with signalling function	0
Number of protected semiconductor outputs	2
Number of protected contact energized outputs	0
Type of interface for safety communication	Other
Type of switching output of the OSSD	PNP
Type of electric connection	Cable
Operation agent-safety class	Safety class 3
Scope of delivery of the one-way system	Transmitter and receiver
Max. output current at protected output	200 mA

Packing level 1

4548583047730, 4548583047730

Voltage type	DC
Cascadable	No
Suitable for safety functions	Yes
Ambient temperature	-10-55 °C
Fade-out possible	No
Rated control supply voltage at DC	19.2-28.8 V
Detection capability for test bodies	25 mm
Explosion safety category for gas	None
Explosion safety category for dust	None
With monitoring function downstream switching devices	No
With muting function	No
Response time	15 ms
Transmission range of the safety field	7 m
Switching voltage of OSSD at state "high"	24 V
Safety field height	785 mm
Type of safety according to IEC 61496-1	4
With beam coding	No
Wavelength of the sensor	880 nm
Degree of protection (IP)	IP65
Resolution of the light curtain	20 mm
Width sensor	30 mm
Height of sensor	30 mm
Length of sensor	785 mm
Degree of protection (NEMA)	Other

Product data sheet

Safety Light Curtain, F3SJ Easy, Type 4, 25 mm resolution, range 0.2 to 7.0 m, height 785 mm, PNP
