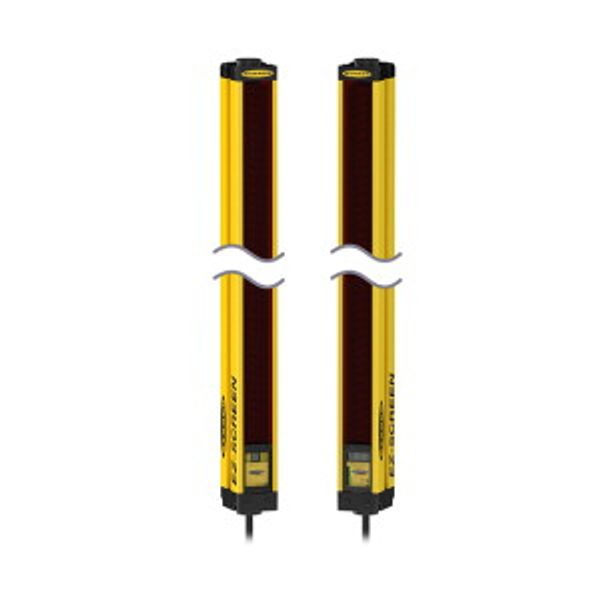

Safety Light Curtain Emitter/Receiver Pair SLSP30-450Q85

Name: Safety Light Curtain Emitter/Receiver Pair SLSP30-450Q85
Brand: Banner
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 0662488712624

MPN: 3071262

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Safety Light Curtain Emitter/Receiver Pair SLSP30-450Q85
Brand	Banner
Categories	Photoelectric Sensors
Country of origin	US
Harmonized System Code	8536 5019 00
Number of protected semiconductor outputs	2
Type of switching output of the OSSD	PNP
Type of electric connection	Connector M12
Max. output current at protected output	500 mA

Packing details

Packing level 1

0662488712624, 0662488712624

Other Technical data

Cascadable	No
Suitable for safety functions	Yes
Ambient temperature	0 °C
Fade-out possible	Yes
With monitoring function downstream switching devices	No
With restart blockage	Yes
With muting function	No
Override possible	No
Response time	13 ms
Reduced resolution	No
Safety field height	450 mm
With beam coding	No
Clock control possible	No
Wavelength of the sensor	950 nm
Resolution of the light curtain	30 mm

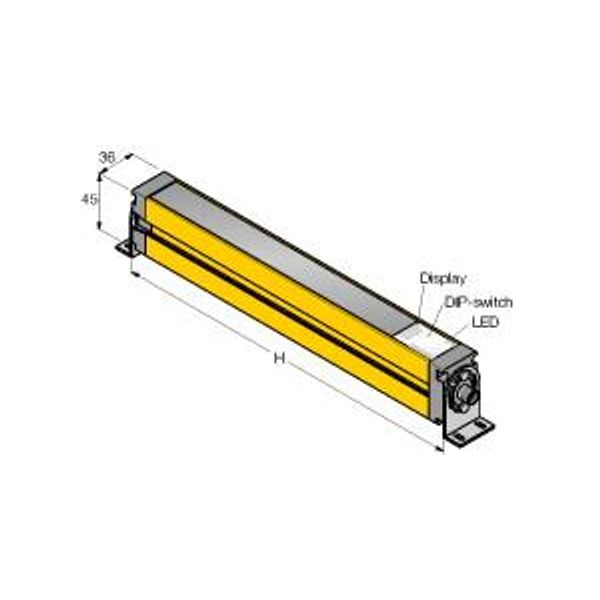

Width sensor	36 mm
Height of sensor	522 mm
Length of sensor	45 mm

Downloads

Product data sheet

Description

Lichtgordijn voor personenbeveiliging, Zender/ontvangerpaar, Bedrijfsspanning 20…28 VDC, max. reikwijdte 18000 mm, Zender met testfunctie, M12 × 1-connector, 5-polig, Ontvanger met M12 × 1-connector, 8-polig, Onderdrukkingsfunctie, Beschermingsklasse IP65, Instelling via DIP-switch, Bedrijfsspanning 24 VDC ± 15 %, Resolutie 30 mm, Scangebied 450 mm, Alle apparaten incl. twee EZA-MBK-11 montagebeugels; extra uitrusting met een lengte van 900 mm of meer incl. één EZA-MBK-12, Personeelsveiligheid categorie 4, PL e conform EN ISO 13849‐1:2008, Type 4 conform IEC 61496‐1,‐2, SIL 3 conform IEC 61508
