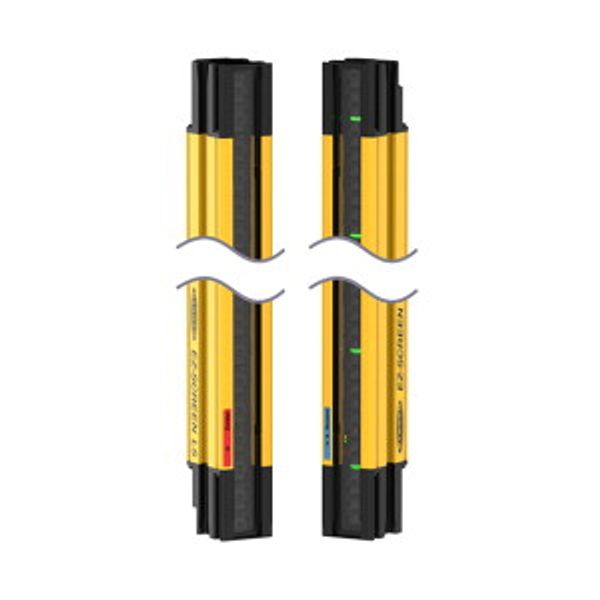

Safety Light Curtain Emitter/Receiver Pair SLLP23-1260P88
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 0662488897031
MPN: 3089703
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Safety Light Curtain Emitter/Receiver Pair SLLP23-1260P88 |
| Brand | Banner |
| Categories |
Photoelectric Sensors
|
| Country of origin | MX |
| Harmonized System Code | 8536 5019 00 |
| Number of protected semiconductor outputs | 2 |
| Type of switching output of the OSSD | PNP |
| Type of electric connection | Connector M12 |
| Max. output current at protected output | 500 mA |
Packing details
| Packing level 1 | 0662488897031, 0662488897031 |
Other Technical data
| Cascadable | No |
| Suitable for safety functions | Yes |
| Ambient temperature | -20 °C |
| Fade-out possible | Yes |
| With monitoring function downstream switching devices | No |
| With restart blockage | Yes |
| With muting function | No |
| Override possible | No |
| Response time | 20.1 ms |
| Reduced resolution | No |
| Safety field height | 1260 mm |
| With beam coding | No |
| Clock control possible | No |
| Resolution of the light curtain | 23 mm |

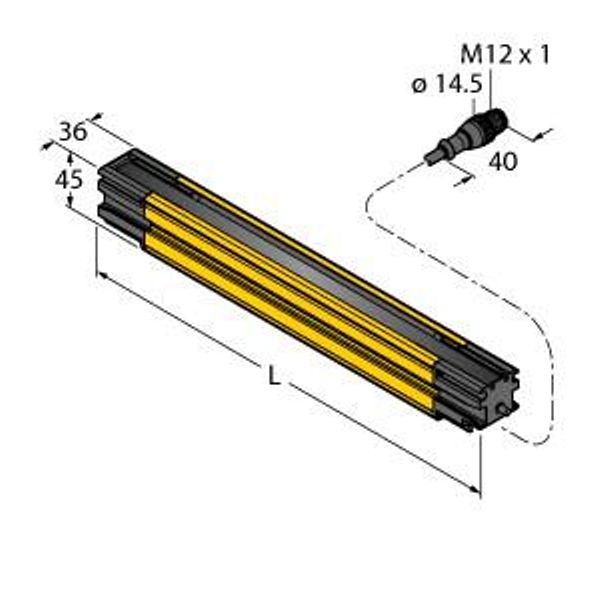

| Width sensor | 36 mm |
| Height of sensor | 1265 mm |
| Length of sensor | 45 mm |
Downloads
Description
Veiligheidslichtgordijn, Zender/ontvanger paar, Bedrijfsspanning 20.4…27.6 VDC, max. reikwijdte 12000 mm, Kabellengte 0.3 m, Robuuste behuizing, beschermingsgraad IP67, Diagnosedisplay voor het weergeven van de toestand en fouten, Bewakingsveldhoogte L: 1260 mm, Optische uitlijningshulp, Geen blinde zone, reikwijdte: 0.1…12 m, resolutie: 23 mm, bedrijfsspanning: 24 VDC, Geen heropstartvergrendeling, Veiligheidslichtgordijn type 4 conform IEC 61496-1 & 61496-2, Categorie 4 Ple conform EN ISO 13849-1, SIL 3 conform IEC 61508 & SIL 3 CL3 conform IEC 62061, Schok- en trilbestendig conform IEC 61496-1
