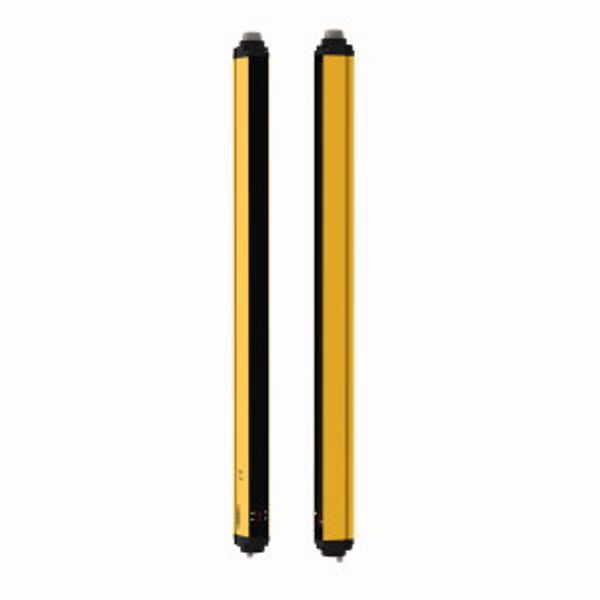

Safety Light Curtain Emitter and Receiver with Muting Function SGSMP4-300Q128

Name: Safety Light Curtain Emitter and Receiver with Muting Function SGSMP4-300Q128
Brand: Banner
Price: 2238.950 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

2 238,95 €

This price is valid until 24.12.25

EAN: 0662488022693

MPN: 3803227

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Safety Light Curtain Emitter and Receiver with Muting Function SGSMP4-300Q128
Brand	Banner
Categories	Photoelectric Sensors
Country of origin	HU
Harmonized System Code	8536 5019 00
Max. output current at protected output	500 mA

Packing details

Packing level 1

0662488022693, 0662488022693

Other Technical data

Width	52 mm
Height	1000.35 mm
Length	56.9 mm
Ambient temperature	0 °C
Number of beams	4
Response time	14 ms
Wavelength of the sensor	950 nm

Downloads

Product data sheet

Description

Veiligheidslichtgordijn, Zender en ontvanger met muting-functie, 4 bundels, bundelafstand 300 mm, Bedrijfsspanning 19.2…28.8 VDC, max. reikwijdte 30000 mm, Zender/ontvangerpaar, Lichtstralen: 4, Resolutie: 300 mm, Ontvanger: M12-connector, 12-polig en 5-polig (muting-sensor), Zender: M12-connector, 8-polig, Scancodes, automatisch/handmatig - start/opnieuw starten, geïntegreerde muting, EDM, Reikwijdte: 30 m, Bedrijfsspanning 24 VDC +20%, Hoogte bewakingsveld: 900 mm, SIL 3 (IEC 61508), PL e (ISO 13849-1)
