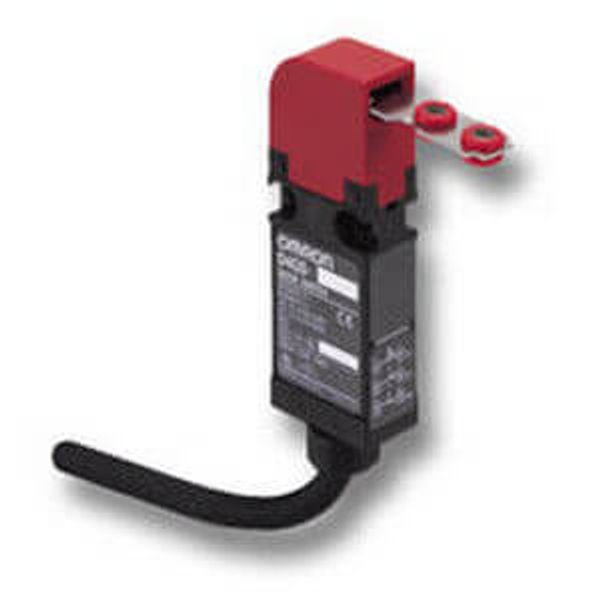

Safety door switch, IP67, 2NC/1NO (slow-action), horizontal key insert D4GS0033C
Order only
Price (excl. VAT):
80,87 €
EAN: 4536854688171
MPN: D4GS-N3R
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Safety door switch, IP67, 2NC/1NO (slow-action), horizontal key insert D4GS0033C |
| Brand | Omron |
| Categories |
Position Switches
|
| Country of origin | NL |
| Harmonized System Code | 8536 5015 00 |
| Suitable for safety functions | Yes |
| With status indication | No |
| Type of switching contact | Slow-action switch |
| Forced opening | No |
| Number of safety auxiliary contacts | 0 |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
Packing details
| Packing level 1 | 4536854688171, 4536854688171 |
Other Technical data
| Rated operation current Ie at AC-15, 230 V | 0.75 A |
| Rated operation current Ie at DC-13, 230 V | 0.27 A |
| Housing material | Other |
| Coating housing | Other |
| Type of interface for safety communication | None |
| Type of electric connection | With cable preassembled |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP67 |
| Type of interface | None |
| Width sensor | 30 mm |
| Height of sensor | 17 mm |
| Length of sensor | 85 mm |
| Ambient temperature during operating | -30-70 °C |
| Degree of protection (NEMA) | Other |
Downloads
Description
Safety door switch, IP67, 2NC/1NO (slow-action), horizontal key insertion, 1 m cable
