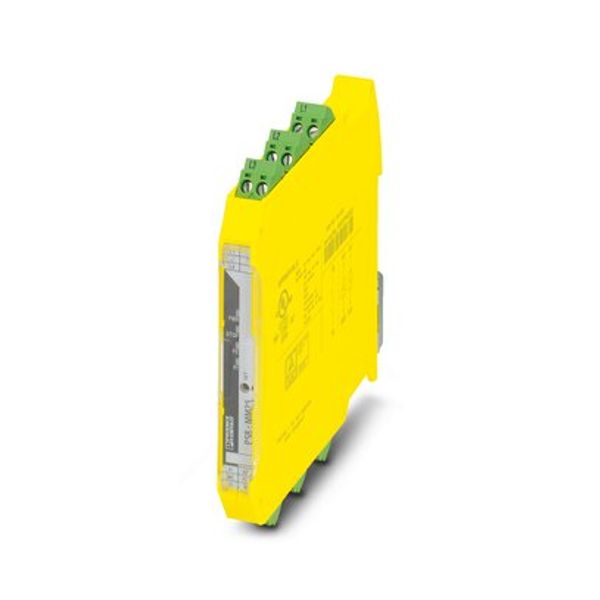

PSR-MM25-1NO-2DO-24DC-SP - Safety relay module image 1
PSR-MM25-1NO-2DO-24DC-SP - Safety relay module image 2
PSR-MM25-1NO-2DO-24DC-SP - Safety relay module image 3
The figure shows a version with a screw connection image 4
PSR-MM25-1NO-2DO-24DC-SP - Safety relay module thumbnail 1
PSR-MM25-1NO-2DO-24DC-SP - Safety relay module thumbnail 2
PSR-MM25-1NO-2DO-24DC-SP - Safety relay module thumbnail 3
The figure shows a version with a screw connection thumbnail 4
Phoenix Contact

PSR-MM25-1NO-2DO-24DC-SP - Safety relay module

Order only
Price (excl. VAT):
415,88 € per pcs
This price is valid until 24.12.25
EAN: 4055626133218
MPN: 2702356
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name PSR-MM25-1NO-2DO-24DC-SP - Safety relay module
Brand Phoenix Contact
Categories Monitoring Relays
Country of origin DE
Harmonized System Code 9032 8900 00
Suitable for safety functions Yes
Function rotational speed monitoring No
Function standstill monitoring Yes
Type of electric connection Other
Voltage type for actuating DC

Packing details

Packing level 1 4055626133218, 4055626133218

Other Technical data

Width 12.5 mm
Height 116.6 mm
Depth 114.5 mm
With approval according to UL Yes
With detachable clamps Yes
With feedback circuit No
Number of outputs, safety related, undelayed, with contact 1
Number of outputs, safety related, delayed, with contact 0
Number of outputs, safety related, undelayed, semiconductors 0
Number of outputs, safety related, delayed, semiconductors 0
Number of outputs, signalling function, undelayed, with contact 0
Number of outputs, signalling function, delayed, with contact 0
Number of outputs, signalling function, undelayed, semiconductors 2
Number of outputs, signalling function, delayed, semiconductors 0
Rated control supply voltage at DC 24 V
With approval for BG BIA No
Rated operating frequency 3000 Hz

Description

Safety relay module for sensor-free zero-speed monitoring for 3- and 1-phase motors up to SIL 3, Cat. 3, PL e, 2-channel evaluation of the residual voltage of AC, three-phase, and DC motors, plug-in Push-in terminal block, width: 12.5 mm
