Saddle clamp Cu f. Rd 7-10mm, clamping range 0.7-5mm

Order only

Price (excl. VAT):

21,30 €

This price is valid until 30.06.26

EAN: 4013364096394

MPN: 251027

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Saddle clamp Cu f. Rd 7-10mm, clamping range 0.7-5mm
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Surface protection	Untreated
Type of fastening screws	Hexagon screw
Material	Copper
Clamping range	0.7-5 mm
Suitable for diameter round conductor	7-10 mm

Packing level 1

4013364096394, 4013364096394

Type of connector

Rebate clamp

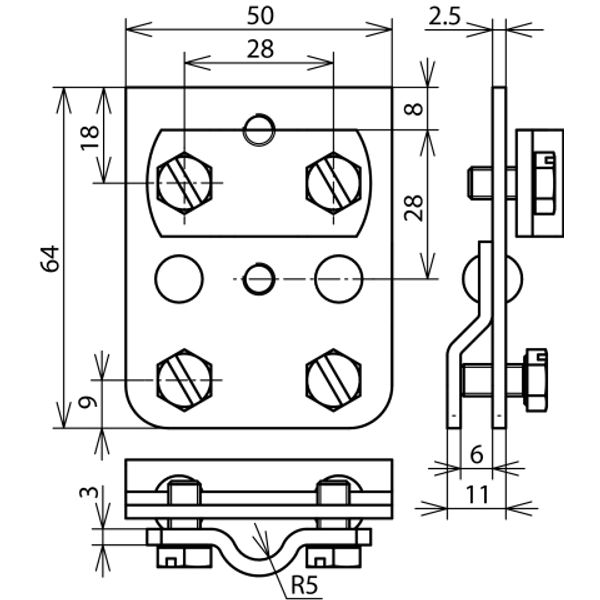

Product data sheet Dimensioned drawing

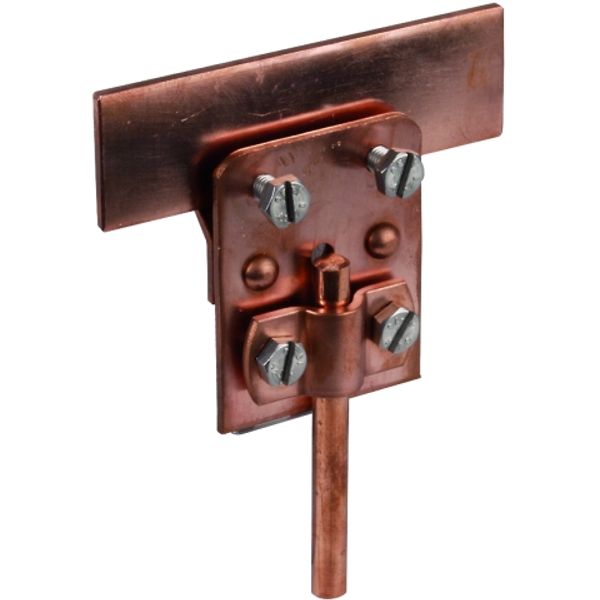

Seam clamp according to EN 62561-1, for connecting round conductors with seams. With two-screw clamp, longitudinal or cross conductor routing.
