Dehn

Saddle clamp Cu clamping range 0.7-10mm with cleat for Rd 7-10mm

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
16,65 €
This price is valid until 31.12.25
EAN: 4013364069046
MPN: 365047
Package: 1
Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition New
Manufacture name Saddle clamp Cu clamping range 0.7-10mm with cleat for Rd 7-10mm
Brand Dehn
Categories Earthing Products
Country of origin DE
Harmonized System Code 8538 9099 00
Surface protection Untreated
Type of fastening screws KS screw
Material Copper
Clamping range 0.7-10 mm
Suitable for diameter round conductor 7-10 mm

Packing details

Packing level 1 4013364069046, 4013364069046

Other Technical data

Type of connector Rebate clamp

Downloads

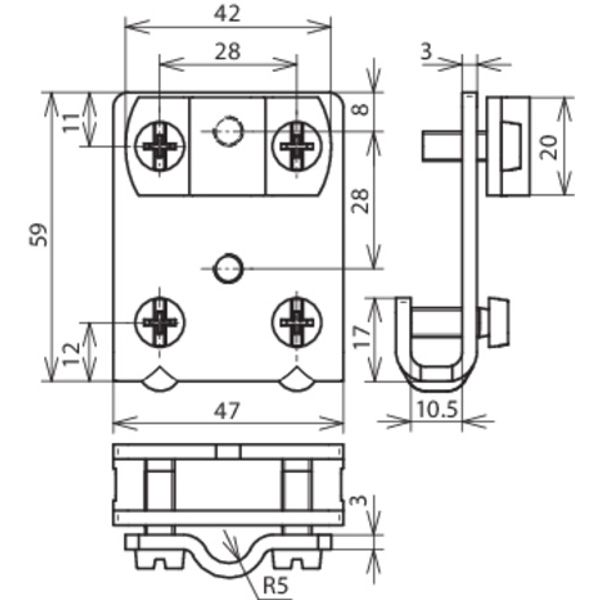

Product data sheet Dimensioned drawing

Description

Seam clamp according to EN 62561-1, for connecting round conductors with seams. With two-screw clamp for hooking under seams, longitudinal or cross conductor routing.
