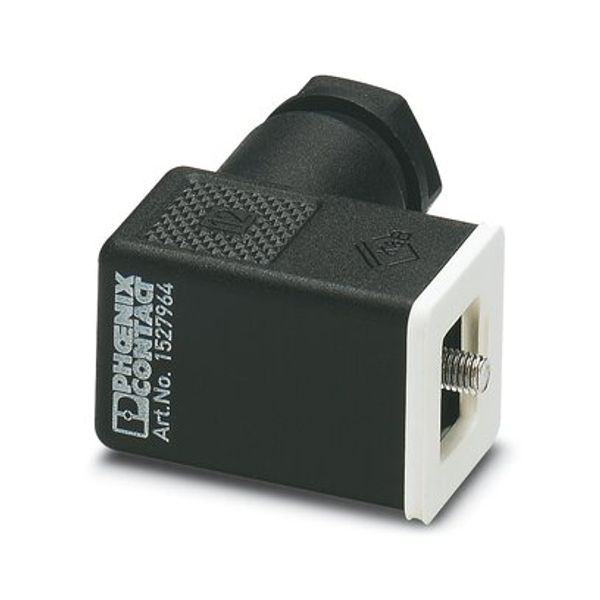

SACC-V-3CON-PG7/CI - Valve connectors

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

3,21 € per pcs

This price is valid until 24.12.25

EAN: 4017918980986

MPN: 1527964

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SACC-V-3CON-PG7/CI - Valve connectors
Brand	Phoenix Contact
Categories	Accessories for Sensors
Country of origin	HU
Harmonized System Code	8536 6990 00
Rated current	6 A
Rated voltage	250 V
Number of poles	3
Housing material	Other
Degree of protection (IP), mounted	IP65
Connectable conductor cross section	0.34-1.5 mm²
For cable outer diameter	4-6 mm

Packing level 1

4017918980986, 4017918980986

With status indication	No
Operating temperature	-30-100 °C
Inflammability class of insulation material according to with UL94	HB
Material of contact surface	Other
With PE-connection	No
Pollution degree	3
Min. number of insertion cycles	50

Valve connectors, 3-position, Valve connector CI (9.4 mm), Screw connection, cable gland Pg7, external cable diameter 4 mm ... 6 mm
