SACC-M 8MS-3QO-0,25-CS-M SK - Connector image 1
Phoenix Contact

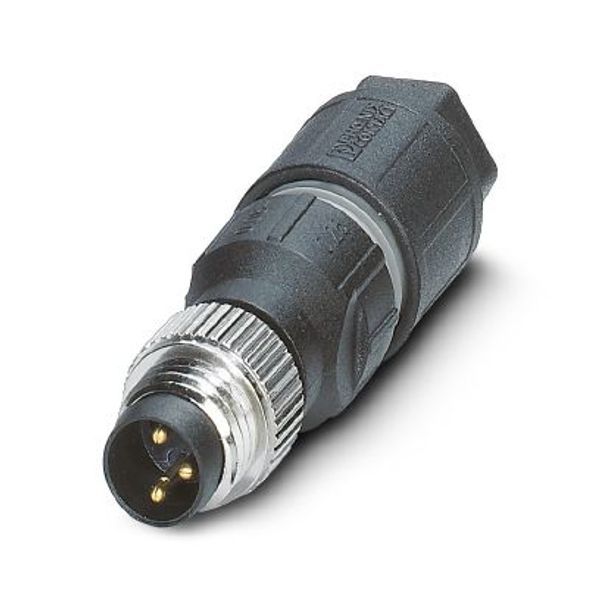

SACC-M 8MS-3QO-0,25-CS-M SK - Connector

Order only Minimal order quantity: 500
Price (excl. VAT):
6,44 € per pcs
This price is valid until 24.12.25
Subtotal: 3 220,00 € MOQ: 500
EAN: 4063151617516
MPN: 1325979
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name SACC-M 8MS-3QO-0,25-CS-M SK - Connector
Brand Phoenix Contact
Categories Circular Connectors
Country of origin DE
Harmonized System Code 8536 6990 00
Rated voltage 48 V
Contact type Pin
Ambient temperature 80 °C
Rated current In 4 A
For cable outer diameter 1.9 mm
Number of power contacts 0
Number of control contacts 3
Number of data contacts 0

Packing details

Packing level 1 4063151617516

Other Technical data

Locking mechanism Other
Screened No
Housing material Other
Coating housing Other
With status indication No
Inflammability class of insulation material according to with UL94 HB
Type of electric connection Insulation displacement connection
Material of contact surface Nickel
Over voltage category II
Pollution degree 3
Type of housing Straight
Connectable conductor cross section solid-core 0.25 mm²
With protective conductor No
Min. number of insertion cycles 100
Material thread ring Other

Description

Connector, Universal, 3-position, Plug straight M8, A-coded, Insulation displacement connection, knurl material: Nickel-plated brass

Accessories

SAC BIT M8-D10 - Tool
Order only
Phoenix Contact
SAC BIT M8-D10 - Tool
36,24 € per pcs
This price is valid until 24.12.25
EAN: 4046356014557
MPN: 1208461
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
TSD 02 SAC - Torque screwdriver
Order only
Phoenix Contact
TSD 02 SAC - Torque screwdriver
59,31 € per pcs
This price is valid until 31.12.25
EAN: 4046356014571
MPN: 1208487
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
PROT-M 8 FS-PA-CHAIN - Sealing cap
Order only
Phoenix Contact
PROT-M 8 FS-PA-CHAIN - Sealing cap
1,68 € per pcs
This price is valid until 24.12.25
Subtotal: 16,80 € MOQ: 10
EAN: 4046356332866
MPN: 1430857
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
TSD-M 1,2NM - Torque screwdriver
Order only
Phoenix Contact
TSD-M 1,2NM - Torque screwdriver
117,55 € per pcs
This price is valid until 31.12.25
EAN: 4046356455589
MPN: 1212224
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
TSD-M SAC-BIT ADAPTER - Adapter insert
Order only
Phoenix Contact
TSD-M SAC-BIT ADAPTER - Adapter insert
9,82 € per pcs
This price is valid until 24.12.25
EAN: 4046356590747
MPN: 1212600
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
