SACC-E-M12MS-5CON-M16/1,0 - Device connector front mounting
Order only
Minimal order quantity: 50
Price (excl. VAT):
8,06 €
per pcs
Subtotal: 403,00 €
MOQ: 50
EAN: 4046356434829
MPN: 1575550
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SACC-E-M12MS-5CON-M16/1,0 - Device connector front mounting |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin | DE |
| Harmonized System Code | 8544 4290 00 |
| Rated voltage | 60 V |
| Contact type | Pin |
| Ambient temperature | -85 °C |
| Degree of protection (IP), mounted | IP67 |
| Rated current In | 4 A |
| Number of power contacts | 0 |
| Number of control contacts | 5 |
| Number of data contacts | 0 |
Packing details
| Packing level 1 | 4046356434829 |
Other Technical data
| Locking mechanism | Other |
| Screened | No |
| Housing material | Other |
| With status indication | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Material of contact surface | Gold |
| Over voltage category | III |
| Pollution degree | 3 |
| Type of housing | Straight |
| With protective conductor | No |
| Material thread ring | Other |
Description

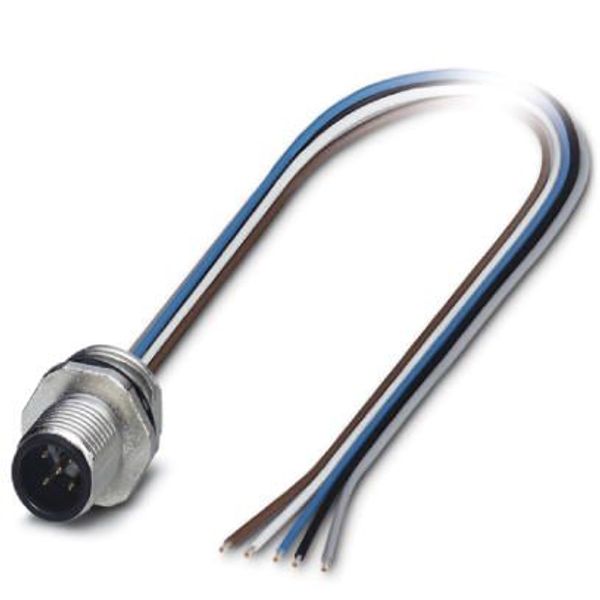

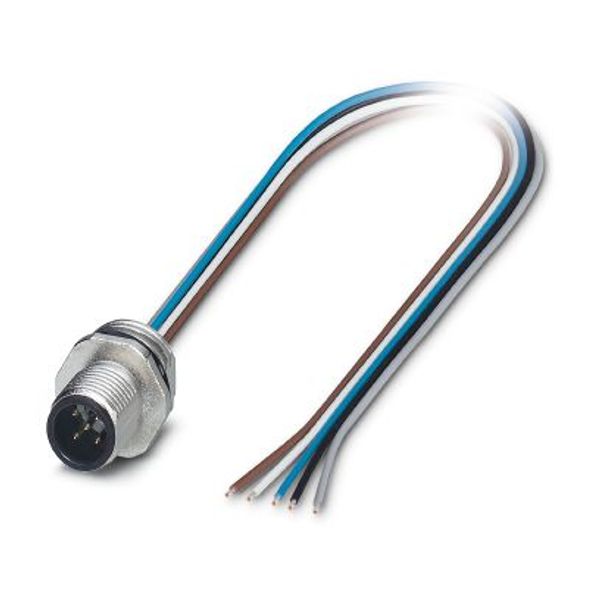

Sensor/Actuator flush-type plug, 5-pos., M12, A-coded, front/screw mounting with M16 thread, with 1 m TPE litz wire, 5 x 0.34 mm²
Accessories
Order only
Phoenix Contact
SACC-E-MU-M16 - Flat nut
0,399 €
per pcs
Subtotal: 39,90 €
MOQ: 100
EAN: 4017918833473
MPN: 1504097
Box: 1
