SACC-E-M12FS-4CON-PG9/4,0 - Device connector front mounting
In stock: No
Vendor stock: No
Minimal order quantity: 50
Price (excl. VAT):
10,58 €
per pcs
Subtotal: 529,00 €
MOQ: 50
EAN: 4046356327503
MPN: 1567694
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SACC-E-M12FS-4CON-PG9/4,0 - Device connector front mounting |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin | DE |
| Harmonized System Code | 8544 4290 00 |
| Rated voltage | 250 V |
| Contact type | Bus |
| Ambient temperature | -85 °C |
| Degree of protection (IP), mounted | IP67 |
| Rated current In | 4 A |
| Number of power contacts | 0 |
| Number of control contacts | 4 |
| Number of data contacts | 0 |
Packing details
| Packing level 1 | 4046356327503 |
Other Technical data
| Locking mechanism | Other |
| Screened | No |
| Housing material | Other |
| With status indication | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Material of contact surface | Gold |
| Over voltage category | II |
| Pollution degree | 3 |
| Type of housing | Straight |
| With protective conductor | No |
| Material thread ring | Other |
Description

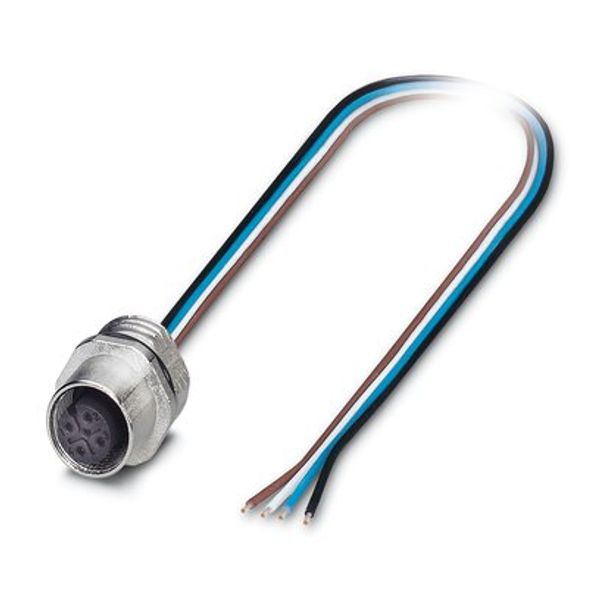

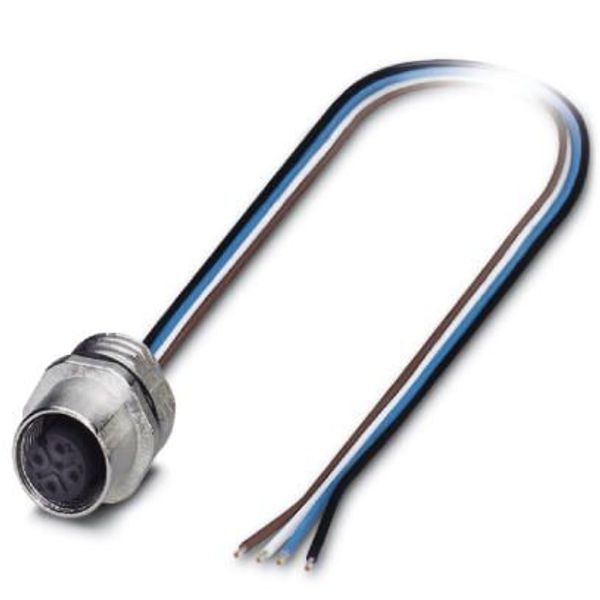

Sensor/actuator flush-type socket, 4-pos., M12, A-coded, front/screw mounting with Pg9 thread, with 4 m TPE litz wire, 4 x 0.34 mm²
Accessories
In stock: No
Phoenix Contact
SACC-E-MU-PG9 - Flat nut
0,399 €
per pcs
Subtotal: 39,90 €
MOQ: 100
EAN: 4017918833480
MPN: 1504084
Box: 1
